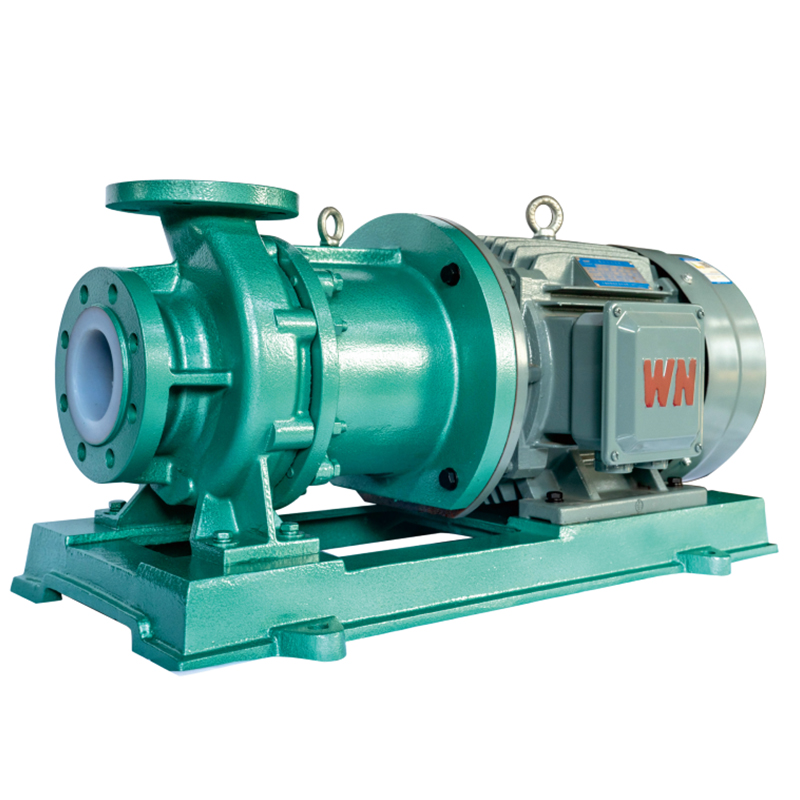

IMD-FT Lined-in Magnetic Driven Pump
  • IMD-FT Lined-in Magnetic Driven Pump

IMD-FT Lined-in Magnetic Driven Pump

The IMD pump is a high-power, high-lift fluorine plastic magnetic-driven pump. The pump’s design and installation dimensions are in accordance with ISO international standards. All specifications feature a direct motor coupling, supported by an intermediate bracket, with a compact structure that allows for easy disassembly. The main components are made of steel-lined F46, providing high pump body strength. The inner and outer magnets are made of high-performance magnetic material, "Neodymium Iron Boron," and the isolation sleeve is made from imported non-metallic materials, significantly reducing magnetic eddy current loss. This pump is capable of transporting high-concentration, corrosive media with a density greater than 1.9t/m3.

The drive method is a magnetic indirect, non-contact drive, with complete isolation between the inner and outer magnets via the isolation sleeve. This ensures the pump chamber is entirely sealed, eliminating leakage and preventing any pollution of the working environment. It is especially suitable for transporting highly acidic, alkaline, oxidative, flammable, explosive, toxic, and volatile media. The IMD series magnetic pump, with its excellent performance and affordable price, has become the first choice for users replacing expensive, hard-to-supply imported magnetic pumps in many projects.

Applications
The IMD series magnetic pump, with a flow rate of 6-120m³/h and a head of 15-40m, is suitable for transporting highly corrosive, flammable, toxic, and volatile chemical media.
Operating temperature: -20 to 100°C; the pump is prohibited from running dry.

Design Features:
1. Leakage Prevention Design and Working Principle
The pump eliminates the need for shaft seals by utilizing magnetic coupling for indirect drive, eliminating leakage issues and preventing pollution of the working environment.
The pump’s flow parts are made of "fluoroplastic alloy," allowing for continuous transportation of any concentration of acids, alkalis, strong oxidizers, and other corrosive media without damage.
The drive unit uses a permanent magnet coupling directly mounted on the motor shaft. The pump chamber is fully sealed, and the impeller rotates through a magnetic coupling. This design is compact, safe, and energy-efficient.
2. Durable Pump Body Structure
While the liquid-contact parts are made of fluoroplastic, the pump body casing is made from metal material, allowing the pump body to withstand the weight of the pipeline and mechanical impacts.

Get A Quote
PREV：ZMD-Lined-in Fluorine Plastic Self-Priming Magnetic Driven Pump
NEXT：IME-FT The fourth generation of high efficiency and energy saving fluorine-lined magnetic pump
  • Description
  • Contact Us

Application Fields
Biological medicine, petrochemical, mining, metallurgy, textile printing and dyeing, electricity, food, papermaking, electroplating, sewage treatment, flue gas
treatment, new energy, new materials, and other industries.

Pump Usage
Applicable to transport inflammable and explosive volatile, poisonous and harmful, valuable and highly corrosive cleaning medium; Such as any. concentration of acid and alkali, salt, solvent, strong oxidizer, etc.

Design Instruction
IMD-FT Lined-in Magnetic Driven Pump is an IMD Lined-in Fluorine Plastic magnetic pump product based on the company's long-term technical
accumulation and the reference to the advanced foreign technology and design research and development of highly efficient energy-saving magnetic pumps. The pump of the appearance and installation dimensions are according to ISO international standards for design and production, all specifications for the motor are straight association-like, supported by a middle bracket, small volume, and convenient disassembly; Outside of the sleeve using fluorine plastic with whole mold, add the strengthening of non-metallic composite material molding, to enhance the pressure resistance of spacer, and eliminate magnetic eddy current loss, Pump performance characteristics for small flow high hm, conveying density greater than 1.9 t/m3 strong corrosive medium. This series of excellent performance and high ratio of magnetic pump has become a substitute imported the first selection of magnetic pump.

With secondary motor n=2900r/min Design pressure: 1.6Mpa

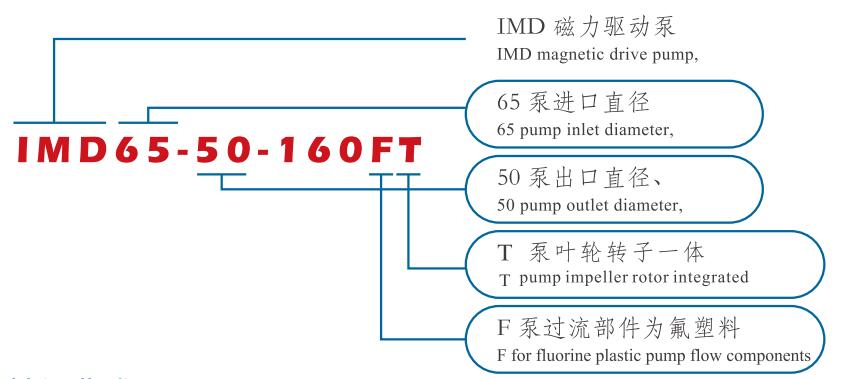

Model No Flow Capacity (m³/h) Pump Head (m) Efficiency (%) Motor power (kW) NPSHr (m) Diameter (mm) Rotating speed
Inlet outlet
IMD32-25-160FT 3.2 32 23 2.2 2.5 32 25
IMD40-25-160FT 6.3 32 30 3 2.7 40 25
IMD40-25-200FT 6.3 50 18 7.5 2.7 40 25
IMD40-25-250FT 6.3 80 18 11 3 40 25
IMD50-32-125FT 12.5 20 41 2.2 3 50 32
IMD50-32-160FT 12.5 32 42 4 3 50 32
IMD50-32-200FT 12.5 50 43 7.5 3 50 32
IMD50-32-250FT 12.5 80 31 15 3 50 32
IMD65-50-125FT 25 20 52 4 3.5 65 50
IMD65-50-160FT 25 32 55 7.5 3.5 65 50 2900
IMD65-40-200FT 25 50 45 11 3.5 65 40
IMD65-40-250FT 25 80 32 22 3.8 65 40
IMD80-65-125FT 50 20 55 7.5 4 80 65
IMD80-65-160FT 50 32 65 11 4 80 65
IMD80-50-200FT 50 50 55 18.5 4 80 50
IMD80-50-250FT 50 80 57 30 4.5 80 50
IMD100-80-125FT 100 20 68 11 4.5 100 80
IMD100-80-160FT 100 32 58 18.5 4.5 100 80
IMD100-65-200FT 100 50 63 30 4.5 100 65
IMD100-65-250FT 100 80 52 55 4.5 100 65
IMD125-100-160FT 160 32 58 30 5 125 100
IMD125-100-200FT 160 50 65 45 5.5 125 100


With four-stage motor n=1450r/min Design Pressure: 1.6Mpa

Model No Flow Capacity (m³/h) Pump Head (m) Efficiency (%) Motor power (kW) NPSHr (m） Diameter (mm) Rotating speed
Inlet outlet
IMD50-32-125FT 6.3 5 38 0.55 2 50 32
IMD50-32-160FT 6.3 8 39 0.55 2 50 32
IMD50-32-200FT 6.3 12.5 40 1.1 2 50 32
IMD50-32-250FT 6.3 20 27 1.5 2 50 32
IMD65-50-125FT 12.5 5 48 0.55 2 65 50
IMD65-50-160FT 12.5 8 51 1.1 2 65 50
IMD65-40-200FT 12.5 12.5 42 1.5 2 65 40
IMD65-40-250FT 12.5 20 29 3 2 65 40
IMD80-65-125FT 25 5 52 1.1 2.5 80 65
IMD80-65-160FT 25 8 63 1.5 2.5 80 65 1450
IMD80-50-200FT 25 12.5 51 2.2 2.5 80 50
IMD80-50-250FT 25 20 53 5.5 2.5 80 50
IMD100-80-125FT 50 5 65 1.5 2.5 100 80
IMD100-80-160FT 50 8 55 2.2 2.5 100 80
IMD100-65-200FT 50 12.5 59 5.5 2.5 100 65
IMD100-65-250FT 50 20 49 7.5 2.5 100 65
IMD125-100-160FT 100 8 55 5.5 3 125 100
IMD125-100-200FT 100 12.5 62 11 3 125 100
IMD125-100-315FT 100 32 53 22 3 125 100
IMD125-100-400FT 100 50 59 30 3 125 100
IMD150-125-250FT 200 20 43 30 3.2 150 125
IMD150-125-315FT 200 32 58 37 3.2 150 125
IMD150-125-400FT 200 50 60 55 4 150 125
IMD200-150-250FT 400 20 60 45 4 200 150
IMD200-150-315FT 400 32 68 75 4 200 150
IMD200-150-400FT 400 50 63 110 5 200 150

Working Conditions

Pump Diameter 32mm - 300mm
Working Temperature - 20℃ - 180℃
Flow Capacity Range 3m³/h - 800m³/h
Pump Head Range 15m - 125m
Materials Range Lined - in FEP(F46), PFA
Designed Standard HG/T2730、SH/T3148、API685
