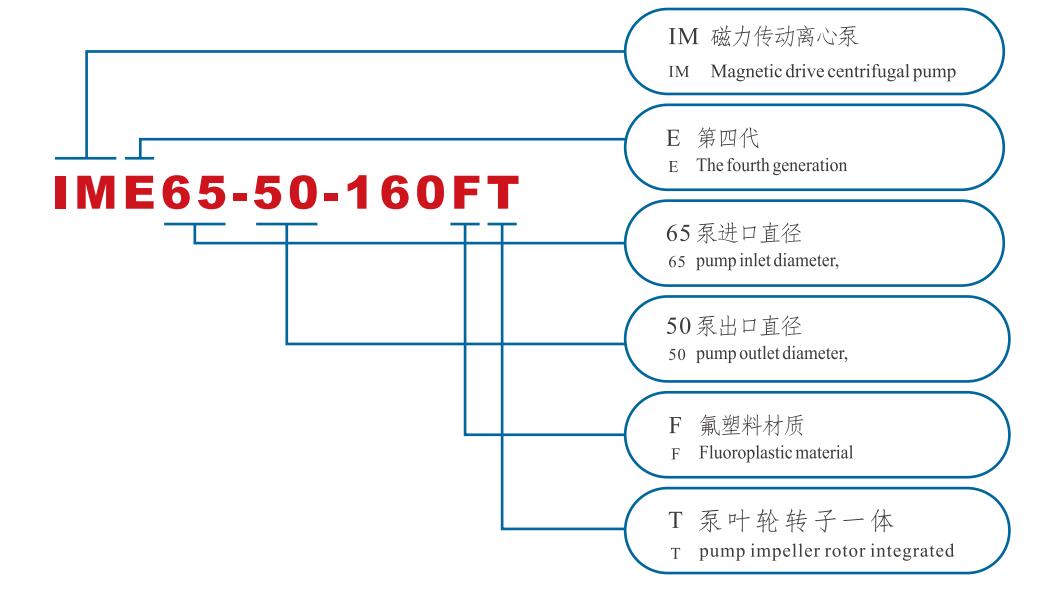

IME-FT The fourth generation of high efficiency and energy saving fluorine-lined magnetic pump

Get A Quote

Application Fields
Biological medicine, petrochemical, mining, metallurgy, textile printing and dyeing, electricity, food, papermaking, electroplating, sewage treatment, flue gas
treatment, new energy, new materials, and other industries.

Pump Usage
Applicable to transport inflammable and explosive volatile, poisonous and harmful, valuable and highly corrosive cleaning medium; Such as any concentration of acid and alkali, salt, solvent, strong oxidizer, etc.

Designed Instruction
The fourth generation of the fluorine-lined magnetic pump is based on the company's long-term technical accumulation and foreign advanced technology for reference to the design and development of a high-efficiency energy-saving magnetic pump. In cooperation with Hefei The University of Technology, through ANSYS and CFD, aided design and repeatedly optimized the hydraulic size to increase the efficiency by 5-8 percentage points compared with the national standard. The reinforced sleeve is made of carbon fiber, which eliminates the influence of magnetic eddy current and provides better pressure and temperature resistance. All specifications have two structures motor direct connection type and split type. The excellent performance and high-cost performance of this series of magnetic pumps have become the first choice to replace imported magnetic pumps

With secondary motor n=2900r/min Design pressure: 1.6Mpa

Model No	Flow Capacity (m³/h)	Pump Head （m）	Efficiency （%）	Motor power （kW）	NPSH_r （m）	Diameter (mm)		Rotating speed
Model No	Flow Capacity (m³/h)	Pump Head （m）	Efficiency （%）	Motor power （kW）	NPSH_r （m）	Inlet	outlet	Rotating speed
IME50-32-125	12.5	20	51	2.2	3	50	32
IME50-32-160	12.5	32	56	3	3	50	32
IME50-32-200	12.5	50	45	5.5	3	50	32
IME50-32-250	12.5	80	35	11	3	50	32
IME65-50-125	25	20	62	3	3.5	65	50
IME65-50-160	25	32	60	5.5	3.5	65	50
IME65-40-200	25	50	55	11	3.5	65	40
IME65-40-250	25	80	40	22	3.8	65	40
IME80-65-125	50	20	70	5.5	4	80	65
IME80-65-160	50	32	69	11	4	80	65	2900
IME80-50-200	50	50	62	15	4	80	50
IME80-50-250	50	80	60	30	4.5	80	50
IME100-80-125	100	20	71	11	4.5	100	80
IME100-80-160	100	32	65	18.5	4.5	100	80
IME100-65-200	100	50	65	30	4.5	100	65
IME100-65-250	100	80	65	45	4.5	100	65
IME100-80-315	100	125	55	90	5	100	80
IME125-100-160	160	32	65	30	5	125	100
IME125-100-200	160	50	70	37	5.5	125	100

With four-stage motor n=1450r/min Design pressure: 1.6Mpa

Model No	Flow Capacity (m³/h)	Pump Head (m)	Efficiency (%)	Motor power (kW)	NPSH_r (m)	Diameter (mm)		Rotating speed
Model No	Flow Capacity (m³/h)	Pump Head (m)	Efficiency (%)	Motor power (kW)	NPSH_r (m)	Inlet	outlet	Rotating speed
IME50-32-125	6.3	5	44	0.55	2	50	32
IME50-32-160	6.3	8	49	0.55	2	50	32
IME50-32-200	6.3	12.5	38	1.1	2	50	32
IME50-32-250	6.3	20	28	1.5	2	50	32
IME65-50-125	12.5	5	56	0.55	2	65	50
IME65-50-160	12.5	8	55	1.1	2	65	50
IME65-40-200	12.5	12.5	50	1.5	2	65	40
IME65-40-250	12.5	20	35	3	2	65	40
IME80-65-125	25	5	68	1.1	2.5	80	65
IME80-65-160	25	8	67	1.5	2.5	80	65	1450
IME80-50-200	25	12.5	60	2.2	2.5	80	50
IME80-50-250	25	20	58	5.5	2.5	80	50
IME100-80-125	50	5	70	1.5	2.5	100	80
IME100-80-160	50	8	64	2.2	2.5	100	80
IME100-65-200	50	12.5	64	5.5	2.5	100	65
IME100-65-250	50	20	64	7.5	2.5	100	65
IME100-80-315	50	32	50	11	2.5	100	80
IME125-100-160	100	8	63	5.5	2.8	125	100
IME125-100-200	100	12.5	68	11	2.8	125	100
IME125-100-250	100	20	72	15	3	125	100
IME125-100-315	100	32	65	18.5	3	125	100
IME125-100-400	100	50	62	30	3.4	125	100
IME150-125-250	200	20	48	30	3.6	150	125
IME150-125-315	200	32	70	30	4.1	150	125
IME150-125-400	200	50	65	55	4.1	150	125
IME200-150-250	400	20	65	45	4.5	200	150
IME200-150-315	400	32	70	75	4.5	200	150
IME200-150-400	400	50	66	110	5	200	150
IME250-200-315	650	32	53	132	6.5	250	200
IME300-250-315	1000	32	70	185	6.5	300	250

Working Conditions

Pump Diameter	32 - 300mm
Working Temperature	- 20℃ - 180℃
Flow Capacity Range	3m³/h - 800m³/h
Pump Head Range	15m - 125m
Materials Range	Lined-in FEP(F46), PFA.
Designed Standard	HG/T2730、SH/T3148、API685
