NMLEW-type split double-insulated magnetic drive centrifugal pump
  • NMLEW-type split double-insulated magnetic drive centrifugal pump

NMLEW-type split double-insulated magnetic drive centrifugal pump

The NMLEW-type split double-insulated magnetic drive centrifugal pump (referred to as NMLEW magnetic pump) and the NMLSW-type split triple-insulated magnetic drive centrifugal pump (referred to as NMLSW magnetic pump) are newly developed, fully leak-proof, and corrosion-resistant pumps based on market demands and existing magnetic pumps. These pumps mainly consist of an electric motor, a magnetic coupling, and an insulated corrosion-resistant centrifugal pump. The power is transmitted through the magnetic coupling, ensuring no leakage. The key feature is that when the electric motor drives the outer magnet of the magnetic driver to rotate, the magnetic lines pass through the gap and isolation sleeve, acting on the inner magnet, causing the pump shaft to rotate synchronously with the motor, thus transmitting torque without contact. At the input end of the pump shaft, since the liquid is enclosed within the stationary isolation sleeve, there are no dynamic seals, thereby eliminating the common issues of leakage in the petroleum and chemical industries, ensuring completely leak-free operation.

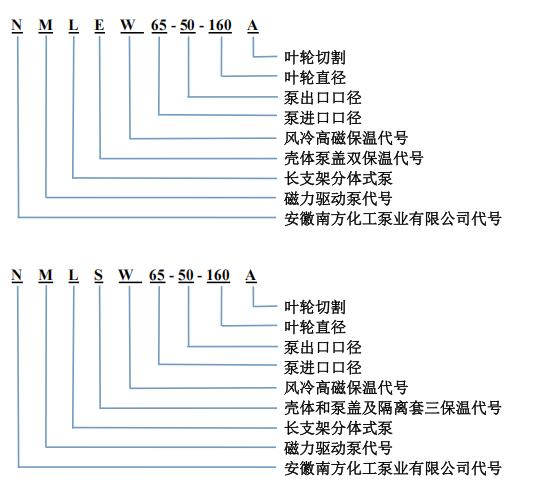

These pump models are designed according to the ISO2858 and HG/T2730 standards, with interface dimensions compatible with replacing other chemical pump models such as IH and CZ, offering good interchangeability, high efficiency, and low vibration.

The NMLEW series double-insulated high-magnetic stainless steel magnetic pump uses high-temperature cobalt material for the inner and outer magnets, providing high magnetic efficiency and a low-temperature coefficient. A special insulation layer is added to the pump casing and pump cover, specifically designed for mediums prone to crystallization that require insulation. For high-temperature mediums above 200°C, a metal wound gasket (code NMLEWD) is used for sealing.

The NMLSW series triple-insulated stainless steel magnetic pump is based on the NMLEW series double-insulated stainless steel magnetic pump, with additional insulation layers on the casing, pump cover, and isolation sleeve, specifically for mediums prone to crystallization. For high-temperature mediums above 200°C, a metal wound gasket (code NMLSWD) is used for sealing.

The modular structure makes it very easy to disassemble and maintain, greatly reducing the professional expertise required from maintenance personnel. The pump can be equipped with dry-running protection and temperature monitoring devices as per the user's requirements to prevent pump damage caused by dry running.

The pump ensures absolute leakage-free operation, completely solving the leakage issue inherent in sealed pumps, making it the best alternative to shielded pumps.

Applications: Applicable Fields: Environmental protection, petroleum, chemicals, food, biopharmaceuticals, power generation, metallurgy, aerospace, and other industries, such as refineries, ethylene plants, natural gas processing plants, various chemical plants, pharmaceutical plants, nuclear fuel plants, nuclear power plants, etc.

Applicable Processes: Clean, flammable, explosive, volatile, toxic, precious liquids, and other media that require leakage prevention and cannot tolerate seal contamination.

Materials: The flow components of the pump can be made from various corrosion-resistant materials, such as 304, 304L, 302, 321, 316, 316L, 904, titanium alloys, nickel-based alloys, etc., depending on the operating conditions and user requirements. For special needs, custom designs can be made based on specific operating conditions.

Get A Quote
PREV：NMQ-Direct-coupled Stainless steel magnetic pump
NEXT：ZMD-Lined-in Fluorine Plastic Self-Priming Magnetic Driven Pump
  • Description
  • Contact Us
Model No Flow (m3/h) Head (m) NPSHr (m) Efficiency (%) Shaft Power (kW) Motor Power (kW) Speed (r/min) Diameter (mm)
Inlet outlet
32-20-125 2 22 2 28 0.43 1.1 2900 32 20
3.2 20 28 0.62 1.5
3.8 18.5 28 0.68 2.2
32-20-160 2 33 2 25 0.72 1.5 2900
3.2 32 25 1.12 2.2
3.8 30 25 1.24 3
32-32-200 2 51 2 20 1.39 4 2900 32
3.2 50 20 2.18 5.5
3.8 48 20 2.49 7.5
40-25-125 4.4 21 2 35 0.72 1.5 2900 40 25
6.3 20 35 0.98 2.2
8.3 18 35 1.16 3
40-25-160 4.4 33 2 32 1.24 2.2 2900
6.3 32 32 1.72 3
8.3 30 32 2.12 4
40-25-200 4.4 51 2 25 2.45 4 2900
6.3 50 25 3.43 5.5
8.3 48 25 4.34 7.5
40-32-250 4.4 82 2 20 4.92 11 2900 32
6.3 80 20 6.87 15
8.3 74 20 8.37 18.5
50-32-125 8.8 22 2 34 1.55 3 2900 50 32
12.5 20 42 1.62 4
16.3 18 40 2 5.5
50-32-160 8.8 33 2 26 3.04 4 2900
12.5 32 39 2.79 5.5
16.3 30 43 3.1 7.5
50-32-200 8.8 51 2 20 6.11 7.5 2900
12.5 50 31 5.49 11
16.3 48 35 6.09 15
50-32-250 8.8 82 2 16 12.29 15 2900
12.5 80 25 10.9 18.5
16.3 78 28 12.37 22

Model No Flow (m3/h) Head (m) NPSHr (m) Efficiency (%) Shaft Power (kW) Motor Power (kW) Speed (r/min) Diameter (mm)
Inlet outlet
65-50-125 17.5 22 2 33 3.18 4 2900 65 50
25 20 44 3.1 5.5
32.5 18 45 3.54 7.5
65-50-160 17.5 34 2 32 5.07 5.5 2900
25 32 45 4.84 7.5
32.5 28 47 5.28 11
65-40-200 17.5 53 2 30 8.42 15 2900 40
25 50 40 8.51 18.5
32.5 46 42 9.7 18.5
65-40-250 17.5 82 2 25 15.64 22 2900
25 80 37 14.73 30
32.5 77 41 16.63 37
65-40-315 17.5 127 2.4 18 33.64 45 2900
25 125 27 31.54 55
32.5 122 31 34.85 55
80-65-125 35 22 2.4 48 4.37 7.5 2900 80 65
50 20 57 4.78 11
65 17 55 5.47 11
80-65-160 35 35 2.4 45 7.42 15 2900
50 32 55 7.93 18.5
65 28 53 9.36 18.5
80-50-200 35 53 2.4 40 12.64 22 2900 50
50 50 50 13.62 30
65 46 49 16.63 30
80-50-250 35 83 2.4 36 21.99 37 2900
50 80 45 24.22 45
65 72 47 27.13 45
80-50-315 35 128 2.4 28 43.6 55 2900
50 125 40 42.57 75
65 122 43 50.25 75 100 80
100-60-125 70 24 3.2 53 8.64 15 2900
100 20 59 9.24 18.5
130 14 57 8.7 18.5
100-60-160 70 36 3.2 48 15.3 22 2900
100 32 57 14.91 30
130 24 57 14.91 30
100-65-200 70 54 3.2 51 20.2 37 2900 65
100 50 56 24.33 37
130 42 59 25.22 45
100-65-250 70 82 3.2 45 34.76 45 2900
100 80 56 38.93 55
130 78 55 50.24 75
100-65-315 70 132 3.2 36 69.94 75 2900
100 125 50 68.12 90
130 114 52 77.66 110
125-125-125 120 23 3.2 64 11.75 15 2900 125 125
200 20 64 17.03 18.5
240 17 64 17.37 22
125-80-160 120 36 3.2 61 19.3 22 2900 80
200 32 61 28.59 30
240 28 61 30.02 37
125-100-200 120 55 4.5 56 32.11 37 2900 100
200 50 65 41.92 45
240 46 60 50.14 55
125-100-250 120 87 4.5 50 56.89 90 2900
200 80 56 77.85 110
240 73 56 85.25 132
150-125-250 120 24.8 2.8 54 15.02 18.5 1450 150 125
200 20 65 16.77 22
240 15 56 17.52 30
150-125-315 120 36 2.8 51 23.08 30 1450
200 32 58 30.07 37
240 29 58 32.7 45
150-125-400 120 53 4 49 35.37 45 1450
200 50 53 51.41 55
240 44 53 54.29 75
200-150-250 240 23 4 53 28.38 37 1450 200 150
400 20 65 33.54 45
460 18 62 36.39 55
200-150-315 240 36 3.5 55 42.8 55 1450
400 32 67 52.06 75
460 29 65 55.92 90
200-150-400 240 56 4 55 66.58 75 1450
400 50 66 82.57 90
460 47 63 93.51 110
