The IHF Series Single-Stage Single-Suction Fluoroplastic Alloy Chemical Centrifugal Pump (IHF Centrifugal Pump) is designed and manufactured to international standards, integrating cutting-edge non-metallic pump technology. The pump casing is constructed with a metal shell lined with perfluoroethylene propylene (F46). The pump cover, impeller, and shaft sleeve feature metal inserts encapsulated in fluoroplastic through a sintering and pressing method. The external bellows mechanical seal is designed with a stationary ring made from 99.9% alumina ceramic (or silicon carbide) and a rotating ring made from PTFE filler material, ensuring excellent corrosion resistance, wear, and superior sealing performance.

Both the pump's inlet and outlet are reinforced with cast steel to improve its pressure resistance. The IHF centrifugal pump is highly regarded in practical use for its excellent corrosion and wear resistance, high-temperature tolerance, durability, high mechanical strength, and smooth operation. The pump features a well-designed structure that promotes reliable sealing, easy maintenance, and long service life, all while minimizing downtime and reducing the technical expertise required for upkeep.

Manufactured in compliance with ISO2858 and HG/T3183 standards, this pump’s interface dimensions align with other chemical pump models such as IH, CZ, and more, ensuring compatibility, high efficiency, and minimal vibration.

The IHF series centrifugal pumps are widely used in various industries, including biopharmaceuticals, petrochemicals, mining metallurgy, textile printing and dyeing, power generation, food processing, papermaking, electroplating, wastewater treatment, flue gas treatment, new energy, and new materials.

The IHF series pumps typically feature a single-end external WB2 mechanical seal. The silicon carbide mechanical seal ring is lightweight and has a low coefficient of thermal expansion, high hardness, excellent high-temperature strength, good dimensional stability at elevated temperatures, strong corrosion resistance, high elasticity modulus, and an extended service life.

Customization options are available for the IHF series pumps, and the mechanical seal can be tailored to meet the specific requirements of different working conditions. For handling corrosive media with crystallization or solid particles, a double-end mechanical seal with water flushing can be chosen.

The bearing box components of the IHF pumps utilize grease lubrication, preventing oil leakage, bearing slippage, excessive temperature rise, and bearing damage.

The simple structure of the IHF series pumps makes maintenance straightforward, significantly reducing the technical skills needed from maintenance personnel and simplifying disassembly and repair.

Applications:
Fields of Use: The IHF centrifugal pump is widely utilized across various industries, including environmental protection, petroleum, chemicals, food, biopharmaceuticals, power generation, metallurgy, aerospace, and more. It is particularly suitable for applications in refineries, ethylene plants, natural gas processing plants, chemical plants, pharmaceutical factories, nuclear fuel plants, nuclear power plants, and other industrial sectors.

Product Applications: The corrosion and wear resistance of the IHF centrifugal pump have been proven through extensive practical use. Some key applications include:

Transporting corrosive media in chemical production.

Chlorine wastewater treatment and acid addition in ion membrane caustic soda processes (widely used in domestic ion membrane caustic soda plants).

Electrolyte transport in non-ferrous metal smelting.

Acid washing processes in automobile manufacturing.

Pharmaceutical, petrochemical, power, electroplating, dyeing, pesticide, papermaking, food, and textile industries.

Long-term transportation of concentrated sulfuric acid, hydrochloric acid, hydrofluoric acid, nitric acid, aqua regia, strong alkalis, strong oxidants, organic solvents, reducing agents, and other highly corrosive media at temperatures ranging from -20°C to 150°C without any damage. This makes it one of the most popular choices for users in such industries.

Materials:
The pump casing is crafted from a metal shell lined with perfluoroethylene propylene (F46, PFA), while the pump cover and impeller are made by encapsulating metal inserts with fluoroplastic through a sintering and pressing process. The advanced external bellows mechanical seal is used for the shaft, with the stationary ring made from alumina ceramic (or silicon carbide), and the rotating ring made from PTFE filler material, providing superior corrosion and abrasion resistance. The inlet and outlet are reinforced with cast steel, significantly enhancing the pump's tolerance to both temperature and pressure. If required, custom designs and manufacturing options are available to meet specific operational conditions.

Application Fields
Biological medicine, petrochemical, mining, metallurgy, textile printing and dyeing, electricity, food, papermaking, electroplating, sewage treatment, flue
gas treatment, new energy, new materials, and other industries.

Pump Usage
Conveying different concentrations of sulfuric acid, hydrochloric acid, nitric acid, aqua regia, hydrofluoric acid, strong alkali, strong oxidizer, reductant, and strong corrosive medium such as chlorine ion. Can be resistant to all stainless steel to resist corrosion medium, instead of the expensive titanium alloy, money.

Design Instruction
IHF single-stage single-suction horizontal fluorine plastic centrifugal pump is according to the international standard and combined with a non-metallic pump design and manufacturing process. The pump body adopts a metal shell lining fee (F46, PFA), pump cover, impeller, and shaft sleeve are fluorine plastic with metal insert outsourcing whole sintering suppression and become, shaft seal mounted outside using advanced bellows mechanical seal, static choose 99.9% alumina or silicon carbide rings, a ring with four fluorine filling materials, its excellent corrosion resistant seal. Import and export of pump adopts cast steel reinforcement, in order to enhance the bearing gentle pressure on the performance of the pump. Practical use shows that the pump has corrosion resistance, abrasion resistance, high-temperature resistance, not aging, high mechanical strength, smooth operation, reasonable structure, advanced, sealed performance is reliable, easy disassembly maintenance, long service life.

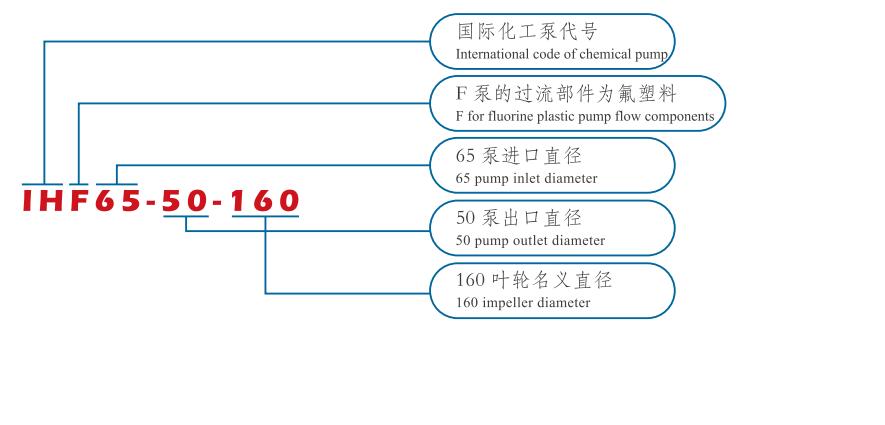

Model No	Flow Capacity (m³/h)	Pump Head (m)	Motor Power (KW)	Rotating Speed (r/min)	Efficiency (%)	NPSH_r(m)	Diameter(mm)
							Inlet	outlet
IHF40-25-125	4	23	1.5	2900	32	2.5	40	25
	6	20
	8	18.5
	2	5.5	0.55	1450	28	2.5
	3	5
	4	4.5
IHF40-25-160	4	34	2.2	2900	30	3
	6	32
	8	28
	2	9	0.55	1450	24	3
	3	8
	4	7
IHF40-25-200	4	52	4	2900	26	3
	6	50
	8	48
	2	13.5	0.75	1450	22	3
	3	12.5
	4	12
IHF40-25-250	4	82	7.5	2900	22	4.5	40	25
	6	80
	8	78
	2	20.5	1.5	1450	20	4.5
	3	20
	4	19.5
IHF50-32-125	10	23	2.2	2900	51	3	50	32
	12.5	20
	15	18.5
	5	5.5	0.55	1450	46	3
	6.3	5
	8	4.5
IHF50-32-160	10	34	4	2900	41	3
	12.5	32
	15	28
	5	9	0.55	1450	37	3
	6.3	8
	8	7
IHF50-32-200	8	52	7.5	2900	36	3
	12.5	50
	17	48
	5	13.5	1.1	1450	30	3
	6.3	12.5
	8	12
IHF50-32-250	10	82	15	2900	30	4.5
	12.5	80
	15	78
	5	20.5	1.5	1450	26	4.5
	6.3	20
	8	19.5
IHF65-50-125	15	23	3	2950	58	3.5	65	50
	25	20
	30	18.5
	7.5	5.5	0.55	1450	52	3.5
	12.5	5
	15	4.5

Model No	Flow Capacity (m³/h)	Pump Head (m)	Motor Power (KW)	Rotating Speed (r/min)	Efficiency (%)	NPSH_r(m)	Diameter(mm)
							Inlet	outlet
IHF65-50-160	15	34	5.5	2900	50	3.5	65	50
	25	32
	30	28
	7.5	9	1.1	1450	45	3.5
	12.5	8
	15	7
IHF65-40-200	15	52	11	2900	46	3.5		40
	25	50
	30	48
	7.5	13.5	1.5	1450	40	3.5
	12.5	12.5
	15	12
IHF65-40-250	15	82	18.5	2900	43	3.5
	25	80
	30	78
	7.5	20.5	3	1450	39	3.5
	12.5	20
	15	19.5
IHF80-65-125	40	23	7.5	2900	48	4	80	65
	50	20
	60	18.5
	15	5.5	1.1	1450	43	4
	25	5
	30	4.5
IHF80-65-160	40	34	11	2900	61	4
	50	32
	60	28
	15	9	1.5	1450	56	4
	25	8
	30	7
IHF80-50-200	35	52	15	2900	63	4		50
	50	50
	60	48
	15	13.5	2.2	1450	57	4
	25	12.5
	30	12
IHF80-50-250	35	80	30	2900	49	4.5	80	50
	50	78
	60	76
	15	20.5	5.5	1450	46	4.5
	25	20
	30	19.5
IHF80-50-315	40	127	45	2900	42	5
	50	125
	60	120
	15	34	11	1450	35	5
	25	32
	30	30
IHF100-80-125	80	22	15	2900	54	4.5	100	80
	100	20
	120	18.5
	40	5.5	2.2	1450	50	4.5
	50	5
	60	4.5
IHF100-80-160	80	34	18.5	2900	67	4.5
	100	32
	120	28
	40	9	2.2	1450	63	4.5
	50	8
	60	7
IHF100-65-200	80	52	30	2900	70	4.5		65
	100	50
	120	48
	40	13.5	5.5	1450	66	4.5
	50	12.5
	60	12
IHF100-65-250	70	82	45	2900	65	5
	100	80
	120	78
	40	20.5	7.5	1450	62	5
	50	20
	60	19.5

Model No	Flow Capacity (m³/h)	Pump Head (m)	Motor Power (KW)	Rotating Speed (r/min)	Efficiency (%)	NPSH_r(m)	Diameter(mm)
							Inlet	outlet
IHF100-65-315	70	127	75	2900	50	5.2	100	65
	100	125
	120	123
	40	34	15	1450	46	5.2
	50	32
	60	30
IHF125-100-160	130	34	30	2900	61	5	125	100
	150	32
	170	28
	65	9	4	1450	56	5
	75	8
	85	7
IHF125-100-200	130	52	45	2900	63	5		100
	150	50
	170	48
	65	13.5	11	1450	55	5
	75	12.5
	85	12
IHF125-100-280	150	102	110	2900	60	6
	200	100
	240	96
	80	27	18.5	1450	56	6
	100	25
	120	23
IHF125-100-315	80	34	18.5	1450	60	5.5
	100	32
	120	30
IHF125-100-400	80	53	30	1450	65	6	125	100
	100	50
	120	48
IHF150-125-250	150	20.5	22	1450	60	5	150	125
	200	20
	240	18
IHF150-125-315	150	34	30	1450	70	5.5	150	125
	200	32
	240	30
IHF150-125-400	150	52	55	1450	65
	200	50
	240	48
IHF200-150-250	250	21	45	1450	58	6	200	150
	400	20
	480	18
IHF200-150-315	250	34	75	1450	60	6
	400	32
	480	30
IHF200-150-400	250	52	90	1450	67	6.5
	400	50
	480	48
IHF250-200-315	400	34	90	1450	75	6.5	250	200
	600	32
	700	28
IHF250-200-400	400	53	132	1450	68	6.5
	600	50
	700	47
IHF300-250-315	800	34	160	1450	80	7	300	250
	950	32
	1100	30
IHF300-250-400	800	53	185	1450	77	7
	980	50
	1100	47
IHF400-350-600	2000	32	355	980	65	6	400	350
IHF550-500-800	3600	36	710	750	65	5	550	500

Working Conditions

Pump Diameter	25mm - 400mm
Working Temperature	- 20℃ - 180℃
Flow Capacity Range	1.6m³/h - 2600m³/h
Pump Head Range	5m - 130m
Materials Range	Lining FEP(F46), PFA
Designed Standard	GB/T9969、ISO5828
