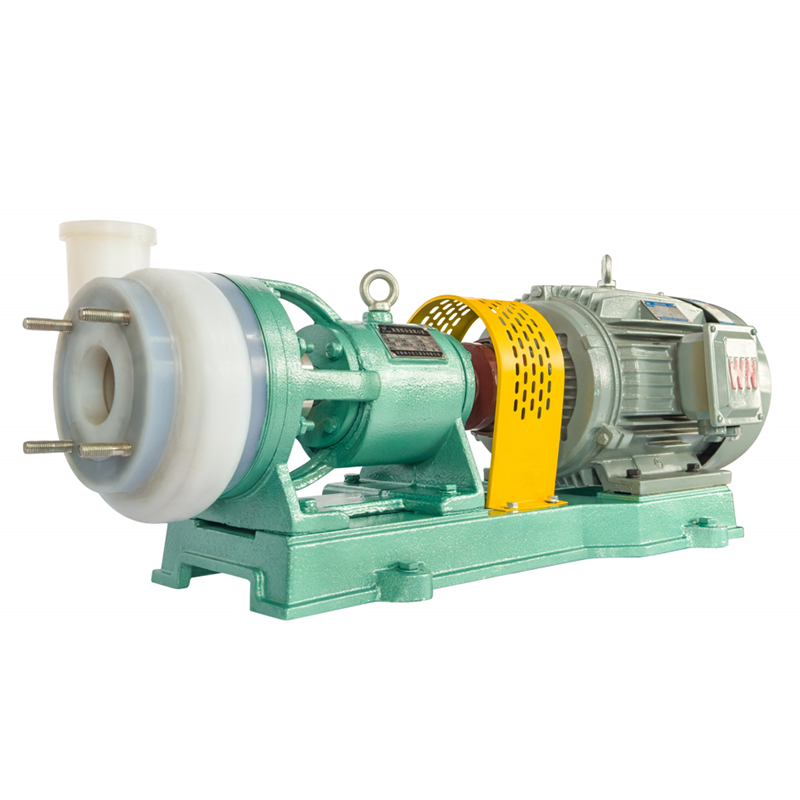

FSB Fluorine Plastic Alloy Centrifugal Pump

FSB Fluorine Plastic Alloy Centrifugal Pump

The pump casing, impeller, and pump cover of the FSB and FSB (D) series are made by encapsulating metal inserts with fluoroplastic through high-temperature molding. The flow parts are made of fluoroplastic. The sealing system uses an adjustable PTFE below the mechanical seal. These pumps feature a compact structure and simple operation. They are widely used in industries such as acid and alkali production, automobile acid cleaning, pesticide production, electronics, and wastewater treatment.

Get A Quote
  • Description
  • Contact Us

Application Fields
Biological medicine, petrochemical, mining, metallurgy, textile printing and dyeing, electricity, food, papermaking, electroplating, sewage treatment, flue gas treatment, new energy, new materials, and other industries.

Pump Usage
Conveying different concentrations of sulfuric acid, hydrochloric acid, nitric acid, aqua regia, hydrofluoric acid, strong alkali, strong oxidizer, reductant, and strong corrosive medium such as chlorine ion. Can be resistant to all stainless steel to resist corrosion medium, instead of the expensive titanium alloy, money
alloy material, such as a pump.

Design Instruction
The FSB fluorine plastic alloy centrifugal pump is to use special pump manufacturing and processing technology, pump body, impeller, and pump cover are made of metal insert outsourcing fluorine plastic after high-temperature molding, and sealing adopts adjustable PTFE bellows mechanical seal. Stents and short the series is divided into two kinds of structure forms, reasonable design, by the pool structure, simple operation, convenient maintenance, etc.

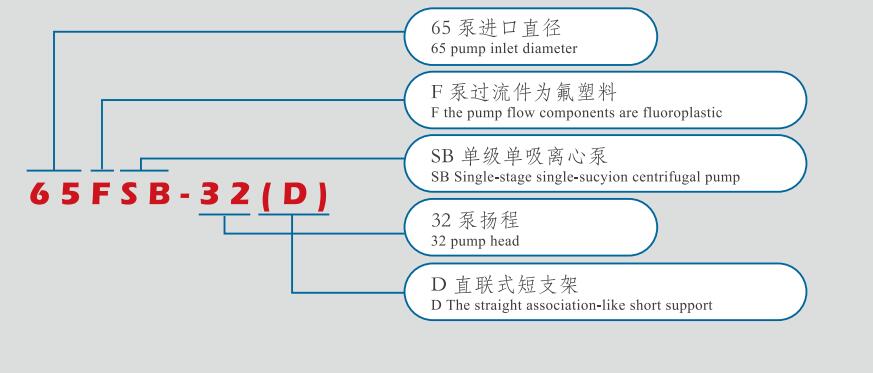

Model No Flow Capacity (m³/h) Pump Head (m) Motor Power (KW) Rotating Speed (r/min) Efficiency (%) NPSHr(m) Diameter(mm)
Inlet outlet
25FSB - 18 1.8 20 1.5 2900 18 3 25 25
3.6 18 25 3
5 15 21 3
25FSB - 25 2 26 1.5 2900 25 3
3.6 25 36 3
5 23 38 3
40FSB - 15 3.5 15 3 2900 21 3 40 32
5 15 26 3
8 10 18 3
40FSB - 20 6 23 3 2900 30 3
10 20 42 3
12 17 38 3
40FSB - 30 6 32 3 2900 22 3
10 30 31 3
12 28 32 3
50FSB - 20 8 21 3 2900 40 3 50 32
12.5 20 52 3
15 18 52 3
50FSB - 25 8 26 3 2900 38 3
12.5 25 48 3
15 22 48 3
50FSB - 30 8 32 3 2900 35 3
12.5 30 46 3
15 28 46 3
65FSB - 20 15 21 4 2900 32 3 65 50
25 20 43
30 18 46
65FSB - 32 15 34 5.5 2900 42 3
25 32 56
30 28 58
80FSB - 20 35 22 5.5 2900 55 3 80 65
50 20 65
60 17 63
80FSB - 30 35 34 7.5 2900 58 3.5
50 32 64
60 28 60
80FSB - 40 35 42 11 2900 53 3.5 50
50 40 63
60 36 60
80FSB - 50 35 52 15 2900 55 3.5
50 50 63
60 45 55
80FSB - 55 35 56 18.5 2900 50 4
50 55 60
60 48 55
100FSB - 32 80 34 15 2900 65 3.5 100 80
100 32 70
121 28 65
40FSB - 15(D) 3.5 15 3 2900 21 3 40 32
5 15 26
8 10 18
40FSB - 20(D) 6 23 3 2900 30 3
10 20 42
12 17 38
40FSB - 30(D) 6 32 3 2900 22 3
10 30 31
12 28 32
50FSB - 20(D) 8 21 3 2900 40 3 50 32
12.5 20 52 3
15 18 52 3
50FSB - 25(D) 8 26 3 2900 38 3.5
12.5 25 48 3.5
15 22 48 3.5
50FSB - 30(D) 8 32 3 2900 35 3.5
12.5 30 46 3.5
15 28 46 3.5
65FSB - 32(D) 15 34 5.5 2900 42 3.5 65 50
25 32 56 3.5
30 28 58 3.5
80FSB - 20(D) 35 22 5.5 2900 55 3.5 80 65
50 20 65 3.5
60 17 63 3.5
80FSB - 30(D) 35 34 7.5 2900 58 3.5
50 32 64 3.5
60 28 60 3.5

Working Conditions

Pump Diameter 25mm - 100mm
Working Temperature - 20℃ - 180℃
Flow Capacity Range 2m³/h - 125m³/h
Pump Head Range 15m - 55m
Materials Range FEP(F46)、UHMW - PE
Designed Standard GB/T 5662、ISO2858、EN733 / DIN24255
