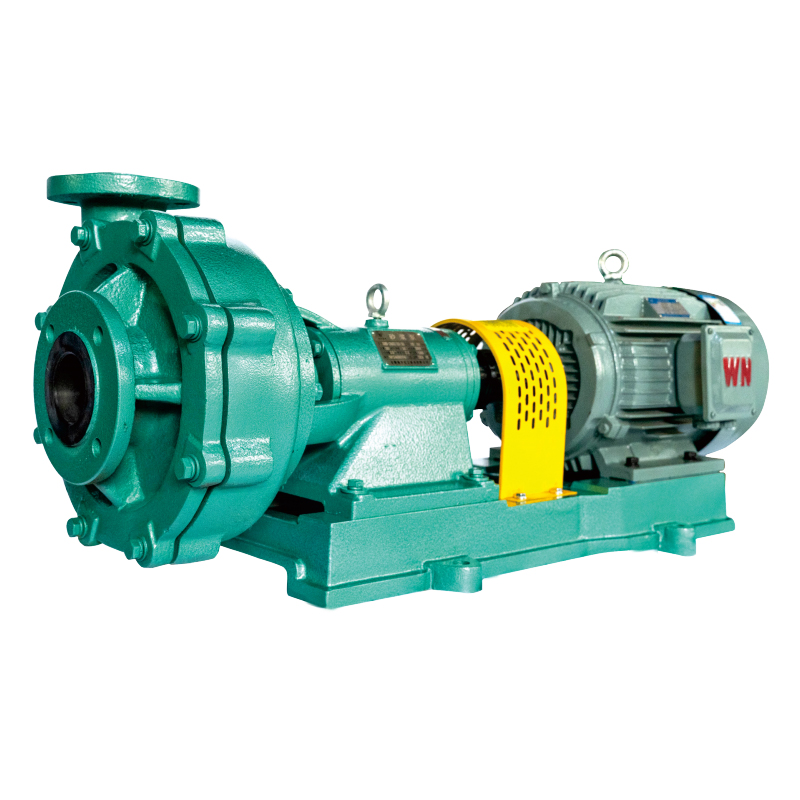

The UHB-ZK series mortar pump is a type of cantilevered single-stage single-suction centrifugal pump, made with a steel-lined ultra-high molecular weight polyethylene. It offers excellent corrosion resistance and outstanding wear resistance. This pump is specially designed for the transport of corrosive media containing particles or crystals. The impeller is a semi-open type, which enhances the passage capacity of the flow channel. The mechanical seal includes three types: A k-type dynamic sealing ring with an external cooling water device, and an external corrugated mechanical seal, ensuring both corrosion and wear resistance requirements. It is suitable for clear liquids as well as slurries. Its wear resistance is 6-7 times greater than that of carbon steel and stainless steel, while also featuring self-lubrication with a low coefficient of friction. It is the optimal choice to replace expensive wear-resistant alloy materials.

This series of pumps follow the IS02858 and GB/T5656 standards, and the pump interface dimensions are designed to replace chemical pumps such as ZS and ZG, ensuring compatibility, high efficiency, and low vibration.

The UHB-ZK series corrosion- and wear-resistant mortar pumps are widely used in industries such as flue gas desulfurization, non-ferrous metal smelting, paper-making, sulfuric acid and phosphatic fertilizer production, petroleum and chemical industries, fine chemicals, electricity generation, metallurgy, water treatment (sewage disposal), mining, etc.

The UHB-ZK series mortar pump is manufactured using a steel-lined ultra-high molecular weight polyethylene molding process, providing excellent corrosion resistance and outstanding wear resistance.

The structure of the UHB-ZK series mortar pump is designed as a cantilevered front-opening type. The impeller is semi-open (without a front cover), which improves the passage capacity of the flow channel, allowing particles and impurities in the medium to pass quickly through the pump chamber without clogging.

The UHB-ZK series mortar pump is highly customizable. The mechanical seal uses a K-type fluoro rubber sealing ring with an external cooling water jacket. Depending on customer requirements, the type of mechanical seal can be changed, such as opting for an external corrugated mechanical seal.

The bearing housing components of the UHB-ZK series mortar pump are lubricated with grease, preventing issues such as oil leakage, bearing slippage, and excessive temperature rise, which could lead to bearing damage.

An optional dry-run protector can be installed to prevent damage caused by dry running.

Applications: Applicable Industries: Flue gas desulfurization, non-ferrous metal smelting, paper-making, sulfuric acid and phosphatic fertilizer industries, petroleum and chemical industries, fine chemicals, electricity generation, metallurgy, water treatment (sewage disposal), mining, etc.

Applicable Processes: Widely used in processes involving acids, alkalis, saltwater, ammonia, alcohols, ketones, ethers, oils, alcoholic beverages, organic solvents, etc. It is particularly suitable for transporting highly corrosive media with fine particles.

Product Use: Suitable for transporting slurries with a solid content of up to 40% that are neutral or corrosive. It performs excellently in desulfurization, denitrification, fertilizer production, and salt production industries.

Material: The shell and front cover of the UHB-ZK corrosion- and wear-resistant mortar pump are made using a steel-lined ultra-high molecular weight polyethylene (UHMW-PE) molding process. All pump flow components are also made from steel-lined UHMW-PE. UHMW-PE is the latest generation of engineering plastics for pumps, offering the best wear resistance, impact resistance (especially low-temperature impact resistance), creep resistance (resistance to environmental stress cracking), and excellent corrosion resistance. UHMW-PE has 4 times the wear resistance of PA66 (Nylon 66) and PTFE (polytetrafluoroethylene), and 6-7 times the wear resistance of carbon steel and stainless steel. Its impact strength is 4 times that of ABS engineering plastics, and it remains stable even at temperatures as low as -190°C. It also has excellent corrosion resistance and can withstand various corrosive media (acids, alkalis, salts, ammonia) and organic solvents within specific temperature and concentration ranges. After immersion in over 80 organic solvents at room temperature to 100°C for 30 days, there were no abnormal phenomena, and its physical properties remained almost unchanged. Due to the chemical stability of UHMW-PE, it is also suitable for use in the food industry. Additionally, UHMW-PE has strong anti-adhesion properties, similar to PTFE, making it highly effective for transporting media with higher viscosity.

Application Field
Desulfurization cycle, non-ferrous metal smelting industry, paper industry, acid phosphate fertilizer industry, petrochemical industry, fine chemical, electric power, metallurgy industry, water treatment (discharge), mining.

Pump Usage
Suitable for conveying solid content under 40% neutral or corrosive slurry. In desulfurization denitration, chemical fertilizer, salt, and other industries have excellent performance.

Designed instruction
UHB-ZK Series Slurry Pump belongs to a single-stage single suction centrifugal pump which is designed for conveying liquids containing corrosive particles or crystallized mediums. The impeller is semi- semi-opened type, it enhances the flow channel through ability. The shaft Seal is divided into a K-type sealing ring with an outside cooling water system device and an external bellows mechanical seal. It will have dual requirements of anti-corrosive and Wear Resistance is not only suitable for transferring clean liquids but also available to transfer slurry liquids. Wear -Resistance performance is more than 6 to 7 times carbon steel and stainless steel. It has self-lubrication functions with a low friction coefficient. It is best to choose instead high-wear resistant alloy materials.

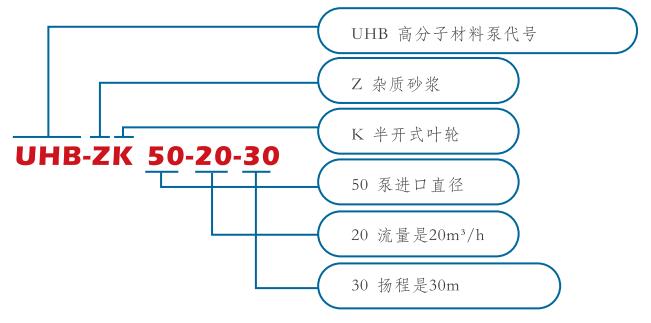

Model No	Flow Capacity (m³/h)	Pump Head (m)	Motor Power (KW)	Rotating Speed (r/min)	Efficiency (%)	NPSH_r(m)	Diameter(mm)
Model No	Flow Capacity (m³/h)	Pump Head (m)	Motor Power (KW)	Rotating Speed (r/min)	Efficiency (%)	NPSH_r(m)	Inlet	outlet
40UHB - ZK - 10 - 20	5	23	3	2900	20	3	40	32
	10	20			25
	15	18			28
40UHB - ZK - 10 - 30	5	32	4	2900	30	3
	10	30			36
	15	26			30
50UHB - ZK - 20 - 20	15	23	4	2900	30	3	50	40
	20	20			32
	25	18			35
50UHB - ZK - 20 - 30	15	32	5.5	2900	33	3
	20	30			37
	25	28			40
65UHB - ZK - 30 - 20	20	25	5.5	2900	35	3.5	65	50
	30	20			42
	35	18			37
65UHB - ZK - 30 - 30	20	35	7.5	2900	38	3.5
	30	30			42
	40	26			45
65UHB - ZK - 30 - 50	20	55	15	2900	30	3.5
	30	50			35
	40	45			38
65UHB - ZK - 25 - 70	18	78	18.5	2900	35	3.5	65	50
	25	75			43
	35	70			50
80UHB - ZK - 50 - 20	40	23	11	2900	33	4	80	65
	50	20			35
	60	18			30
80UHB - ZK - 50 - 30	50	33	15	2900	35	4
	60	30			42
	80	26			36
80UHB - ZK - 50 - 50	50	50	18.5	2900	42	4
	60	40			36
	80	33			35
80UHB - ZK - 50 - 80	50	83	30	2900	36	4
	60	80			46
	80	70			42
100UHB - ZK - 60 - 35	50	37	18.5	2900	45	4.5	100	80
	60	35			47
	70	32			49
100UHB - ZK - 65 - 50	50	55	22	2900	45	4.5
	60	50			47
	70	45			49
100UHB - ZK - 100 - 20	80	23	18.5	2900	32	4.5
	100	20			32
	120	15			28
100UHB - ZK - 100 - 30	80	35	22	2900	43	4.5
	100	30			44
	140	23			46
100UHB - ZK - 100 - 40	80	45	30	2900	44	4.5
	100	40			42
	137	24			31
100UHB - ZK - 100 - 50	80	58	45	2900	40	4.5
	100	50			42
	120	42			36

Model No	Flow Capacity (m³/h)	Pump Head (m)	Motor Power (KW)	Rotating Speed (r/min)	Efficiency (%)	NPSH_r(m)	Diameter(mm)
Model No	Flow Capacity (m³/h)	Pump Head (m)	Motor Power (KW)	Rotating Speed (r/min)	Efficiency (%)	NPSH_r(m)	Inlet	outlet
100UHB - ZK - 100 - 80	80	82	55	2900	42	4.5	100	80
	100	80			46
	120	60			38
125UHB - ZK - 120 - 20	100	23	22	2900	42	4.5	125	100
	120	20			43
	150	15			35
125UHB - ZK - 120 - 32	100	35	30	2900	42	4.5
	120	32			46
	140	25			38
125UHB - ZK - 120 - 50	100	55	45	2900	40	4.5
	120	50			43
	130	40			36
125UHB - ZK - 120 - 60	100	65	55	2900	42	4.5
	120	60			45
	140	56			48
125UHB - ZK - 140 - 28	100	32	30	2900	40	4.5
	140	28			45
	160	24			36
125UHB - ZK - 140 - 50	120	55	55	2900	46	4.5
	140	50			49
	160	40			42
150UHB - ZK - 200 - 20	150	23	37	1450	34	4.5	150	125
	200	20			36
	240	17			32
150UHB - ZK - 200 - 32	150	40	45	1450	41	5
	200	32			46
	240	24			50
150UHB - ZK - 250 - 20	200	26	37	1450	38	5
	250	20			42
	300	15			45
150UHB - ZK - 250 - 30	200	35	45	1450	45	5
	250	30			46
	300	25			41
200UHB - ZK - 300 - 25	250	28	45	1450	51	5.5	200	150
	300	25			52
	320	20			42
200UHB - ZK - 300 - 38	250	42	75	1450	46	5.5
	300	38			48
	320	32			41
200UHB - ZK - 300 - 70	250	75	132	1450	60	5.5
	300	70			62
	350	65			56
200UHB - ZK - 400 - 20	350	23	55	1450	54	5.5
	400	20			54
	480	16			49
200UHB - ZK - 400 - 32	240	39	90	1450	55	5.5
	400	32			62
	500	25			57
250UHB - ZK - 500 - 32	400	35	90	1450	46	5.5	250	200
	500	32			52
	600	23			43
250UHB - ZK - 600 - 20	500	23	75	1450	46	5.5
	600	20			48
	700	18			43
250UHB - ZK - 600 - 32	500	35	110	1450	50	6
	600	32			52
	700	28			56
250UHB - ZK - 600 - 50	500	53	160	1450	56	6
	600	50			62
	700	40			52
300UHB - ZK - 1000 - 20	850	23			54		300	250
	1000	20	110	1450	55	7
	1100	16			46
300UHB - ZK - 1000 - 30	850	35	160	1450	59	7
	1000	30			59
	1100	27			56
300UHB - ZK - 1000 - 50	850	55	250	1450	59	7	300	250
	1000	50			60
	1100	48			62
300UHB - ZK - 1200 - 20	1000	23	160	1450	63	6.5
	1200	20			63
	1400	16			43
300UHB - ZK - 1200 - 30	1000	32	185	1450	58	6.5
	1200	30			60
	1400	28			61
350UHB - ZK - 1400 - 20	1100	23	132	1450	70	6.5	250	300
	1400	20			71
	1500	16			60
350UHB - ZK - 1400 - 32	1250	35	250	1450	67	7
	1400	32			68
	1600	27			56
350UHB - ZK - 1600 - 20	1400	22	200	1450	53	7
	1600	20			55
	1800	18			48
350UHB - ZK - 1600 - 32	1400	35	250	1450	61	6.5
	1600	32			62
	1800	27			58

Working Conditions

Pump Diameter	25 - 350mm
Working Temperature	- 20℃ - 80℃
Flow Capacity Range	3m³/h - 2000m³/h
Pump Head Range	5m - 80m
Materials Range	Lining UHMW - PE
Designed Standard	GB/T5656
