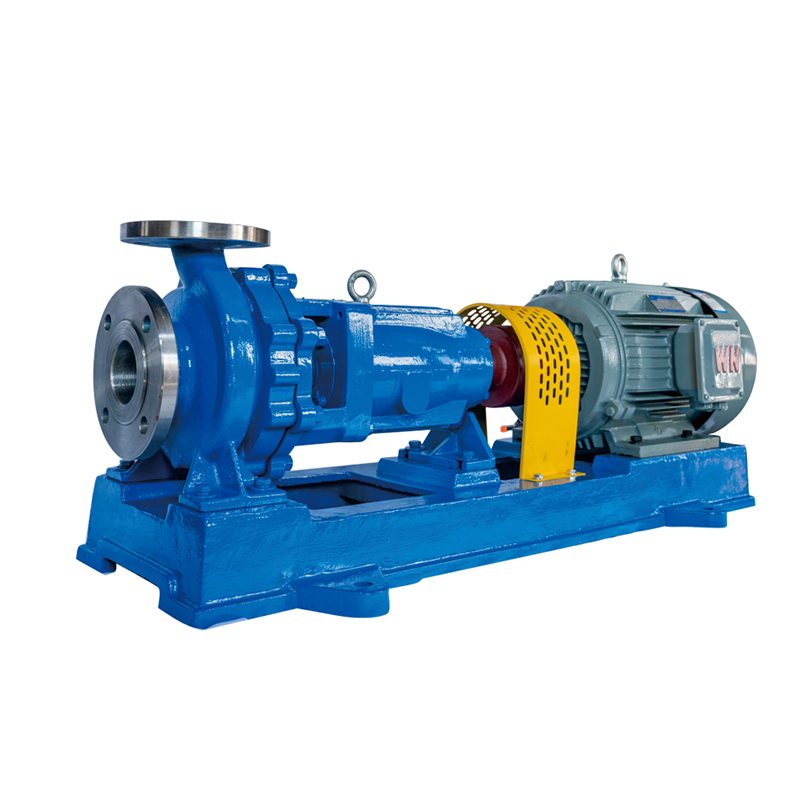

NH Stainless Steel Centrifugal Pump

Get A Quote

Application Field
Biological medicine, petrochemical, mining, metallurgy, textile printing and dyeing, electricity, food, papermaking. electroplating, sewage treatment, flue
gas treatment, new energy, new materials, and other industries.

Pump Usage
Suitable for conveying clean or containing solid particles and fiber content, low temperature or high temperature, neutral or. corrosive liquid. Various temperatures and concentrations of the alkaline solution, various salt solutions, all kinds of liquid petroleum and chemical products, organic compounds, and
other corrosive materials and products.

Design Instruction
NH Series chemical chemical process pump is the latest pump product replaced by the IH Series. The performance parameter and installment drawing as the same as the IH Series.T his pump executed Standard GB/T5662 < The Marks. Performance and specification of Axial Direction end-suction centrifugal pump (16 bar )> .with highly interchangeable for the general spare parts pump. Five specification brackets of the pump can cover full series specification pumps.
It can be chosen gland packing or mechanical seal according to the client's request. Mechanical seals can choose a single (end) face， double(end) face, balanced face,e or imbalance face. The impeller can be designed with open-type or semi-open type. It can transfer certain fiber or particle liquids. It is
generally a standard chemical centrifugal pump in fine chemical fields.

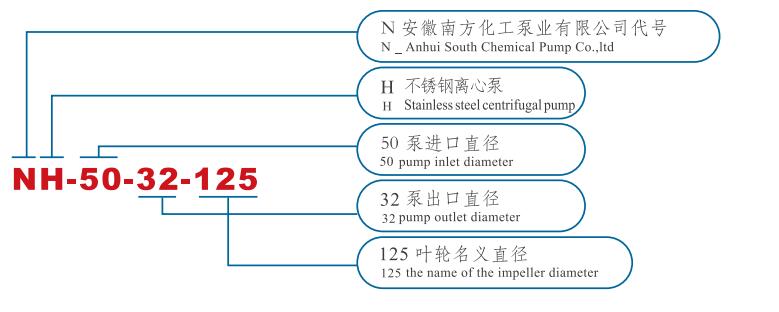

Model No	Flow Capacity (m³/h)	Pump Head (m)	NPSH_r (m)	Efficiency (%)	Motor Power (KW)	Rotating Speed (r/min)	Diameter(mm)
							Inlet	outlet
NH40 - 25 - 125	4	22	2	40	1.5	2900	40	25
	6	20
	8	18.5
	2	5.5	2	34	0.55	1450
	3	5
	4	4.5
NH40 - 25 - 160	4	34	2	30	2.2	2900	40	25
	6	32
	8	28
	2	9	2	27	0.55	1450
	3	8
	4	7
NH40 - 25 - 200	4	52	2	26	4	2900	40	25
	6	50
	8	48
	2	13.5	2	20	0.75	1450
	3	12.5
	4	12
NH50 - 32 - 125	10	22	3	52	2.2	2900	50	32
	12.5	20
	15	18.5
	5	5.5	3	45	0.55	1450
	6.3	5
	8	4.6
NH50 - 32 - 160	10	33	3.5	38	4	2900	50	32
	12.5	32
	15	28
	5	8.6	3.5	35	0.55	1450
	6.3	8
	8	7
NH50 - 32 - 200	10	52	3.5	38	7.5	2900	50	32
	12.5	50
	15	48
	5	13	3.5	33	1.1	1450
	6.3	12.5
	8	12
NH50 - 32 - 250	10	82	3.5	38	11	2900	50	32
	12.5	80
	15	75
	5	20.5	3.5	33	1.5	1450
	6.3	20
	8	19.5
NH65 - 50 - 125	15	22	3.5	51	3	2900	65	50
	25	20
	30	18.5
	7.5	5.5	3.5	48	0.55	1450
	12.5	5
	15	4.5
NH65 - 50 - 160	15	33	3.5	56	5.5	2900	65	50
	25	32
	30	28
	7.5	8.6	3.5	50	1.1	1450
	12.5	8
	15	7
NH65 - 40 - 200	15	52	3.5	52	11	2900	65	40
	25	50
	30	48
	7.5	13	3.5	46	1.5	1450
	12.5	12.5
	15	12
NH65 - 40 - 250	15	82	3.5	36	18.5	2900	65	40
	25	80
	30	78
	7.5	20.5	3.5	32	3	1450
	12.5	20
	15	19.5
NH65 - 40 - 315	15	127	3.5	38	30	2900	65	40
	25	125
	30	123
	7.5	33	3.5	35	5.5	1450
	12.5	32
	15	30
NH80 - 65 - 125	40	22	4	60	5.5	2900	80	65
	50	20
	60	18.5
	20	5.5	4	55	1.1	1450
	25	5
	30	4.6

Model No	Flow Capacity (m³/h)	Pump Head (m)	NPSH_r (m)	Efficiency (%)	Motor Power (KW)	Rotating Speed (r/min)	Diameter(mm)
Model No	Flow Capacity (m³/h)	Pump Head (m)	NPSH_r (m)	Efficiency (%)	Motor Power (KW)	Rotating Speed (r/min)	Inlet	outlet
NH80 - 65 - 160	40	33	4	62	11	2900	80	65
	50	32
	60	28
	20	8.6	4	60	1.5	1450
	25	8
	30	7
NH80 - 50 - 200	40	52	4	63	15	2900	80	50
	50	50
	60	48
	20	13	4	57	2.2	1450
	25	12.5
	30	12
NH80 - 50 - 250	40	82	4	60	22	2900	80	50
	50	80
	60	78
	20	20.5	4	53	4	1450
	25	20
	30	19.5
NH80 - 50 - 315	40	127	4	50	45	2900	80	50
	50	125
	60	123
	20	33	4	45	7.5	1450
	25	32
	30	30
NH100 - 80 - 125	80	22	4.5	70	11	2900	100	80
	100	20
	120	18.5
	30	5.5	4.5	67	1.5	1450
	50	5
	60	4.6
NH100 - 80 - 160	80	33	4.5	70	15	2900	100	80
	100	32
	120	28
	30	8.6	4.5	65	3	1450
	50	8
	60	7
NH100 - 65 - 200	80	52	4.5	71	30	2900	100	65
	100	50
	120	48
	30	13
	50	12.5	4.5	60	4	1450
	60	12
NH100 - 65 - 250	80	82	4.5	70	45	2900	100	65
	100	80
	120	78
	30	20.5	4.5	64	7.5	1450
	50	20
	60	19.5
NH100 - 65 - 315	80	127	4.5	60	75	2900	100	65
	100	125
	120	123
	30	33	4.5	56	11	1450
	50	32
	60	30
NH125 - 100 - 200	150	52	5	65	55	2900	125	100
	200	50
	240	48
	75	13	5	60	11	1450
	100	12.5
	120	12
NH125 - 100 - 160	150	32	5	61	30	1450
NH125 - 100 - 250	150	82	5	68	75	2900	125	100
	200	80
	240	73
	75	20.5	5	62	15	1450
	100	20
	120	19.5
NH125 - 100 - 315	75	33	5	58	22	1450	125	100
	100	32
	120	30
NH125 - 100 - 400	75	52	5	55	37	1450	125	100
	100	50
	120	48
NH150 - 125 - 250	150	20.5	6	63	22	1450	150	125
	200	20
	240	19.5
NH150 - 125 - 315	150	33	6	75	30	1450	150	125
	200	32
	240	30
NH150 - 125 - 400	150	52	6	64	55	1450	150	125
	200	50
	240	48
NH200 - 150 - 250	250	20.5	7	68	37	1450	200	150
	400	20
	460	19.5
NH200 - 150 - 315	250	33	7	73	55	1450	200	150
	400	32
	460	30
NH200 - 150 - 400	250	52	7	73	90	1450	200	150
	400	50
	460	48
NH250 - 200 - 315	300	34	7	76	75	1450	250	200
	600	32
	750	28

Working Conditions

Pump Diameter	25 - 200mm
Working Temperature	- 20℃ - 165℃
Flow Capacity Range	0.8m³/h - 400m³/h
Pump Head Range	12.5m - 130m
Materials Range	304/316/316L/904L/TA2/HC276
Designed Standard	GB/T5662, ISO2858, EN733 / DIN24255
