NMQ-W Stainless steel heat preservation magnetic pump Custom

Home / Products / Magnetic Drive Pumps / NMQ-W Stainless steel heat preservation magnetic pump

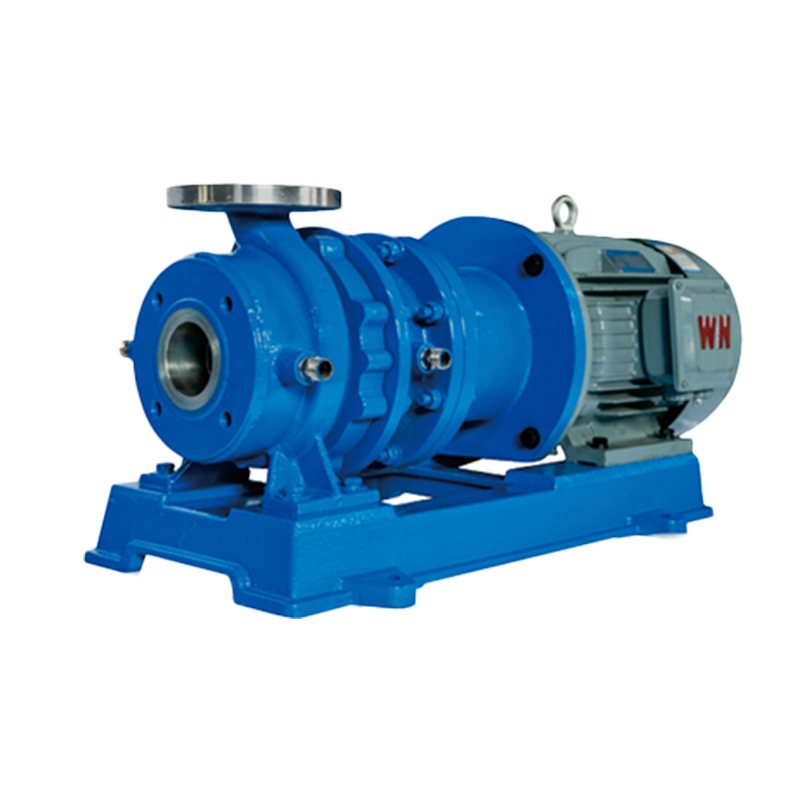

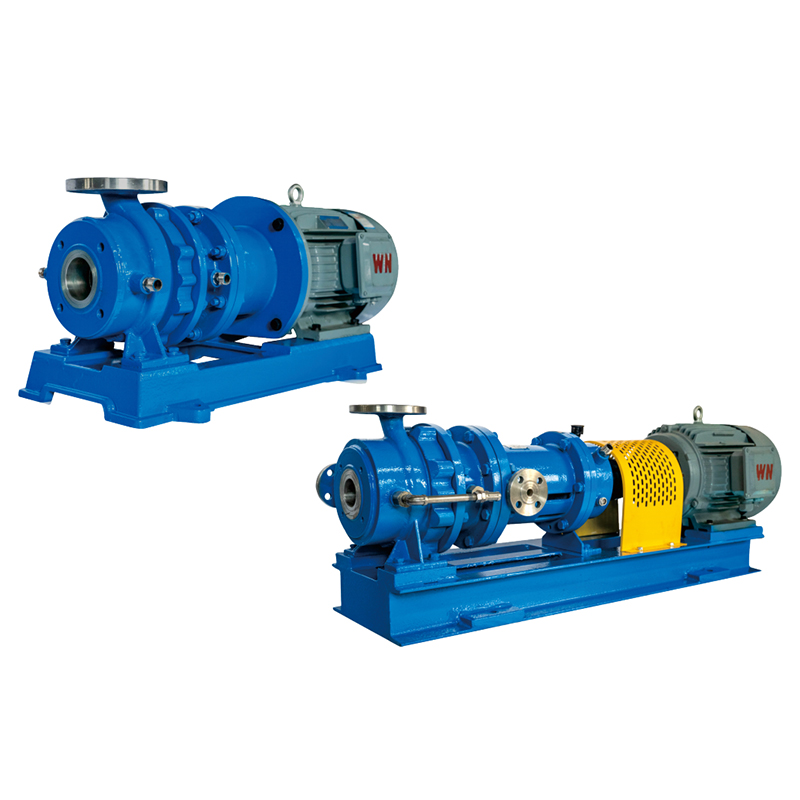

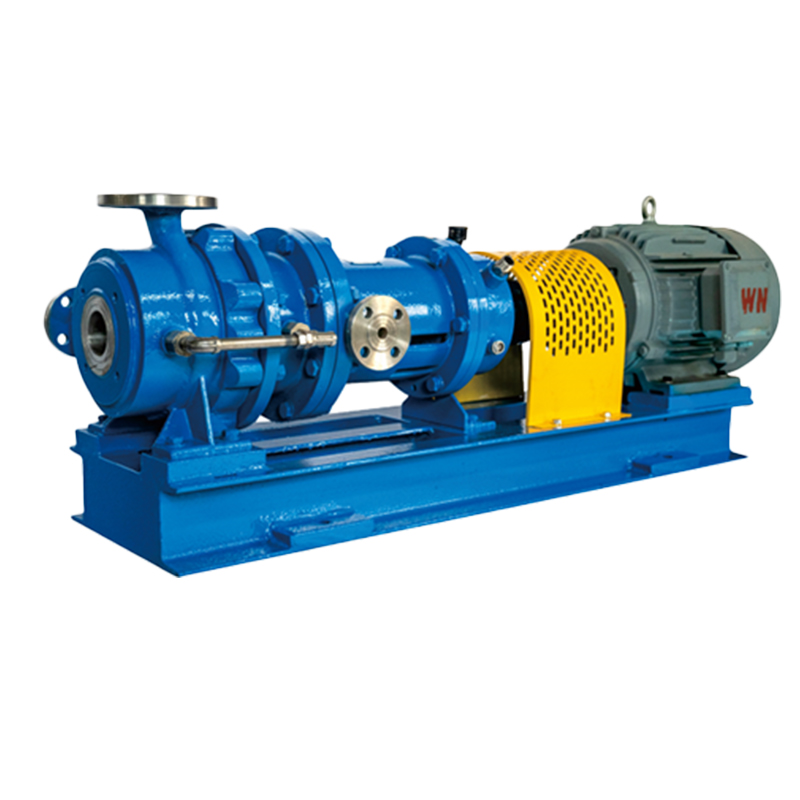

NMQ-W Stainless steel heat preservation magnetic pump
  • NMQ-W Stainless steel heat preservation magnetic pump
  • NMQ-W Stainless steel heat preservation magnetic pump

NMQ-W Stainless steel heat preservation magnetic pump































Get A Quote
PREV：NMQGD-High temperature stainless steel magnetic pump
NEXT：NMQL-Stainless steel magnetic pump
  • Description
  • Contact Us

Application Fields
Biological medicine, petrochemical, mining, metallurgy, textile printing and dyeing, electricity, food, papermaking, electroplating, sewage treatment, flue gas treatment, new energy, new. materials and other industries.

Pump Usage
Applicable to transport inflammable and explosive volatile, poisonous and harmful, valuable and highly corrosive cleaning medium; Such as any concentration of acid and alkali, salt, solvent, strong oxidizer, etc.

Design Instruction
NMQEW (direct connection with two insulation), NMLEW (split with two insulation), and NMLSW (three insulation) are insulation magnetic pumps
developed according to the user's requirements for conveying the medium that is easy to crystallize. They can convey both high-temperature and low-temperature media. This series of magnetic pumps continues the advantages of high-temperature magnetic pumps. The medium must be conveyed within the
specified temperature range. The unique new insulation structure is adopted to keep the medium flowability during the transmission, and avoid condensation,
crystallization, vaporization,n and other phenomena due to temperature variation; the corresponding insulation and cooling methods are adopted for the driving part according to different working conditions to ensure that the driving part will not be affected by the temperature of the transmission medium.

Model No Flow Capacity (m³/h) Pump Head (m) NPSHr Efficiency (%) Water shaft power (kW) Motor power (kW) Rotating speed (r/min) Diameter (mm)
Inlet Outlet
32-20-125 3.2 20 2 16 1.09 1.5 2900 32 20
32-20-160 3.2 32 2 15 1.86 2.2 2900 32 20
32-32-200 3.2 50 2 12 3.63 5.5 2900 32 32
40-25-125 6.3 20 2 20 1.72 2.2 2900 40 25
40-25-160 6.3 32 2 23 2.39 3 2900 40 25
40-25-200 6.3 50 2 18 4.77 5.5 2900 40 25
40-32-250 6.3 80 2 13 10.56 15 2900 40 32
50-32-125 12.5 20 2 27 2.52 3 2900 50 32
50-32-160 12.5 32 2 28 3.89 4 2900 50 32
50-32-200 12.5 50 2 30 5.68 7.5 2900 50 32
50-32-250 12.5 80 2 21 12.98 18.5 2900 50 32
65-50-125 25 20 2 41 3.32 4 2900 65 50
65-50-160 25 32 2 36 6.06 7.5 2900 65 50
65-40-200 25 50 2 32 10.64 15 2900 65 40
65-40-250 25 80 2 24 22.71 30 2900 65 40
65-40-315 25 125 2.4 26 32.75 45 2900 65 40
80-65-125 50 20 2.4 56 4.87 5.5 2900 80 65
80-65-160 50 32 2.4 44 9.91 15 2900 80 65
80-50-200 50 50 2.4 44 15.48 18.5 2900 80 50
80-50-250 50 80 2.4 38 28.68 37 2900 80 50
80-50-315 50 125 2.4 40 42.57 55 2900 80 50
100-80-125 100 20 3.2 48 11.35 15 2900 100 80
100-80-160 100 32 3.2 47 18.55 22 2900 100 80
100-65-200 100 50 3.2 47 28.99 37 2900 100 65
100-65-250 100 80 3.2 51 42.74 55 2900 100 65
100-65-315 100 125 3.2 34 100.18 110 2900 100 65
125-125-125 140 20 4.5 38 20.08 22 2900 125 125
125-80-160 160 32 4.5 43 32.44 37 2900 125 80
125-100-200 200 50 4.5 59 46.18 55 2900 125 100
125-100-250 200 80 4.5 41 106.33 110 2900 125 100
150-125-250 200 20 2.8 51 21.37 22 1450 150 125
150-125-315 200 32 2.8 57 30.59 37 1450 150 125
150-125-400 200 50 2.8 56 48.66 55 1450 150 125
200-150-250 400 20 3.2 68 32.06 37 1450 200 150
200-150-315 400 32 3.5 66 52.84 75 1450 200 150
200-150-400 400 50 3.8 52 104.8 110 1450 200 150
250-200-400 600 50 4 47 173.92 185 1450 250 200

Working Conditions

Caliber 20 - 300mm
Operating temperature - 120℃ - 320℃
Flow range 3m³/h - 800m³/h
Head range 12.5m - 130m
Material range 304，304L，316L，2205/904L，TA2，Hc276
Design standard HG/T2730，SH/T3148，API685
