NMQGD-High temperature stainless steel magnetic pump
  • NMQGD-High temperature stainless steel magnetic pump

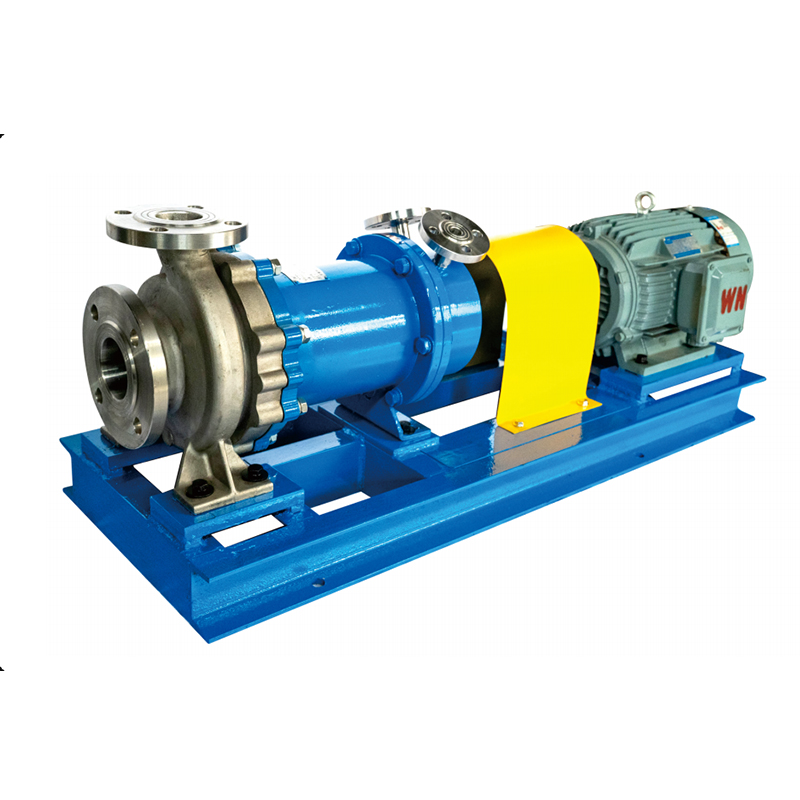

NMQGD-High temperature stainless steel magnetic pump

The NMQ-G series magnetic pump (referred to as NMQ-G magnetic pump) is a high-temperature, high-pressure magnetic pump product developed by our company for the heavy chemical industry. This series of magnetic pumps uses high-temperature resistant magnets that will never demagnetize below 350°C. The friction pair employs temperature compensation technology, effectively solving the problem of damage caused by thermal expansion and contraction of pump components. Additionally, friction pairs can be equipped with different materials based on operating conditions. The isolation sleeve uses advanced arc-shaped technology, making it 1.2 times more pressure-resistant than traditional isolation sleeves. Various bearing box configurations ensure safe operation under different conditions and temperatures, and the modular structure facilitates easier maintenance for users.

Designed according to ISO2858 and HG/T2730 standards, the pump interface dimensions are compatible with replacing other chemical pumps like IH and CZ, offering good interchangeability, high efficiency, and low vibration.

The inner and outer magnets are made from samarium-cobalt permanent magnetic materials, providing high magnetic efficiency and strong high-temperature resistance.

The modular structure is easy to disassemble and maintain, significantly reducing the technical requirements for maintenance personnel.

Dry-running protection devices can be configured according to user requirements to prevent damage caused by dry running.

The pump operates with absolute leakage prevention, thoroughly solving the leakage issues common with sealed pumps, making it the best alternative to shielded pumps.

Applications:
Applicable Fields: Environmental protection, petrochemicals, food, biopharmaceuticals, power generation, mining metallurgy, textile printing and dyeing, aerospace, and other industries, such as refineries, ethylene plants, natural gas processing plants, various chemical plants, pharmaceutical plants, nuclear fuel plants, nuclear power plants, etc.

Applicable Processes: Clean, flammable, explosive, volatile, toxic, high-temperature, high-pressure, precious liquids, and other media requiring leakage prevention, where contamination of the medium by seals is not allowed.

Materials: The flow components of the pump can be made from various corrosion-resistant materials based on the operating conditions and user requirements, such as 304, 304L, 302, 321, 316, 316L, 904, titanium alloys, Hastelloy, nickel-based alloys, etc. For special needs, custom designs can be made based on specific operating conditions.

Get A Quote
PREV：NMZ-Stainless steel sellf-priming magnetic pump
NEXT：NMQ-W Stainless steel heat preservation magnetic pump
  • Description
  • Contact Us

Application Fields
Biological medicine, petrochemical, mining, metallurgy, textile printing and dyeing, electricity, food, papermaking, electroplating, sewage treatment, flue
gas treatment, new energy, new materials, and other industries.

Pump Usage
Applicable to transport inflammable and explosive volatile, poisonous and harmful, valuable and highly corrosive cleaning medium; Such as any concentration of acid and alkali, salt, solvent, strong oxidizer, etc.

Design Instruction
High-temperature stainless steel magnetic pump, NMQG for temperature resistance below 200 C, NMQGD for temperature resistance between 200 C and 320 C， is a new type of high temperature leak-free corrosion-resistant pump developed by our company according to the current user and market demand, combined with the existing magnetic pump in the market. The unique structural design of NMQGD prevents the failure of components due to thermal expansion at high temperatures.

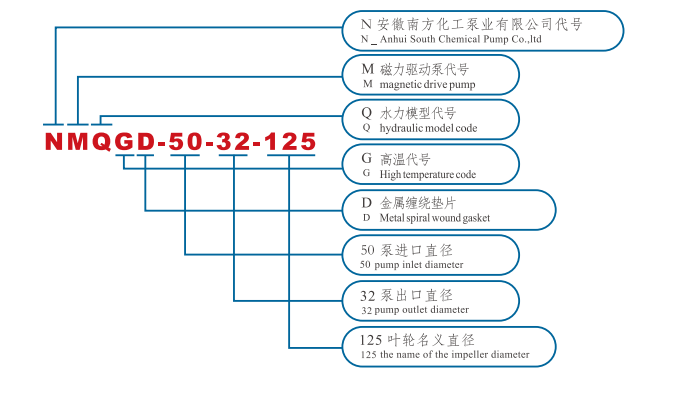

Model No Flow Capacity (m³/h) Pump Head (m) NPSHr Efficiency (%) Water shaft power (kW) Motor power (kW) Rotating speed (r/min) Diameter (mm)
Inlet Outlet
32-20-125 3.2 20 2 16 1.09 1.5 2900 32 20
32-20-160 3.2 32 2 15 1.86 2.2 2900 32 20
32-32-200 3.2 50 2 12 3.63 5.5 2900 32 32
40-25-125 6.3 20 2 20 1.72 2.2 2900 40 25
40-25-160 6.3 32 2 23 2.39 3 2900 40 25
40-25-200 6.3 50 2 18 4.77 5.5 2900 40 25
40-32-250 6.3 80 2 13 10.56 15 2900 40 32
50-32-125 12.5 20 2 27 2.52 3 2900 50 32
50-32-160 12.5 32 2 28 3.89 4 2900 50 32
50-32-200 12.5 50 2 30 5.68 7.5 2900 50 32
50-32-250 12.5 80 2 21 12.98 18.5 2900 50 32
65-50-125 25 20 2 41 3.32 4 2900 65 50
65-50-160 25 32 2 36 6.06 7.5 2900 65 50
65-40-200 25 50 2 32 10.64 15 2900 65 40
65-40-250 25 80 2 24 22.71 30 2900 65 40
65-40-315 25 125 2.4 26 32.75 45 2900 65 40
80-65-125 50 20 2.4 56 4.87 5.5 2900 80 65
80-65-160 50 32 2.4 44 9.91 15 2900 80 65
80-50-200 50 50 2.4 44 15.48 18.5 2900 80 50
80-50-250 50 80 2.4 38 28.68 37 2900 80 50
80-50-315 50 125 2.4 40 42.57 55 2900 80 50
100-80-125 100 20 3.2 48 11.35 15 2900 100 80
100-80-160 100 32 3.2 47 18.55 22 2900 100 80
100-65-200 100 50 3.2 47 28.99 37 2900 100 65
100-65-250 100 80 3.2 51 42.74 55 2900 100 65
100-65-315 100 125 3.2 34 100.18 110 2900 100 65
125-125-125 140 20 4.5 38 20.08 22 2900 125 125
125-80-160 160 32 4.5 43 32.44 37 2900 125 80
125-100-200 200 50 4.5 59 46.18 55 2900 125 100
125-100-250 200 80 4.5 41 106.33 110 2900 125 100
150-125-250 200 20 2.8 51 21.97 22 1450 150 125
150-125-315 200 32 2.8 57 30.59 37 1450 150 125
150-125-400 200 50 2.8 56 48.86 55 1450 150 125
200-150-250 400 20 3.2 66 32.06 37 1450 200 150
200-150-315 400 32 3.5 66 52.84 75 1450 200 150
200-150-400 400 50 3.8 52 104.8 110 1450 200 150
250-200-400 600 50 4 47 173.92 185 1450 250 200

Working Conditions

Caliber 20 - 300mm
Operating temperature - 120℃ - 320℃
Flow range 3m³/h - 800m³/h
Head range 12.5m - 130m
Material range 304, 304L, 316L, 2205/904L, TA2, Hc276
Design standard HG/T2730, SH/T3148, API685
