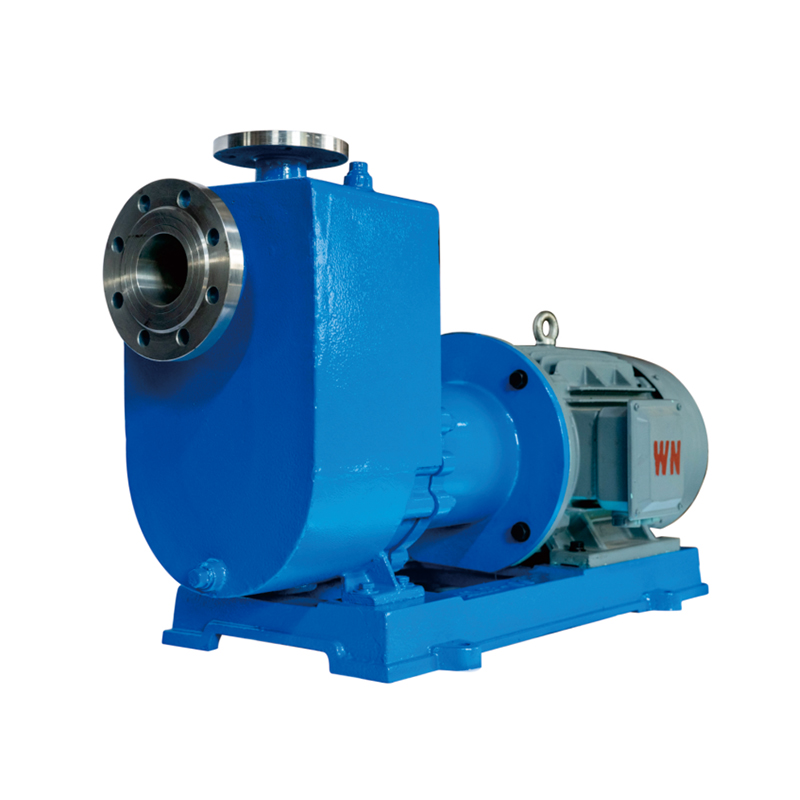

NMZ-Stainless steel sellf-priming magnetic pump
  • NMZ-Stainless steel sellf-priming magnetic pump

NMZ-Stainless steel sellf-priming magnetic pump

NMZ Series Magnetic Drive Self-Priming Pump (referred to as NMZ Magnetic Self-Priming Pump) is a new type of completely leak-free, corrosion-resistant pump developed by our company based on current user and market demands, combining the existing magnetic drive pumps on the market. It consists mainly of a motor, magnetic coupling, and corrosion-resistant centrifugal pump, utilizing the magnetic coupling to transmit power with zero leakage. The key feature is that when the motor drives the outer magnetic steel of the magnetic transmission device to rotate, the magnetic field passes through the gap and isolator sleeve, acting on the inner magnetic steel, causing the pump shaft and the motor to rotate synchronously, transmitting torque without contact. At the power input end of the pump shaft, since the liquid is sealed within the stationary isolator sleeve with no dynamic seals, the common issues of leakage such as running, venting, dripping, and leakage in the petrochemical industry are avoided, achieving complete leak-free operation.

Manufactured according to API688 and HG/T2730 standards, the pump interface size is compatible with replacing ZX, ZW, and other chemical self-priming pump models, offering good compatibility, high efficiency, and low vibration.

Uses neodymium iron boron permanent magnet material for the inner and outer magnetic steels, offering high magnetic efficiency and excellent high-temperature resistance.

Designed as a split type according to technical requirements, with the option to add insulation devices for crystalline media.

The modular structure is very easy to disassemble and maintain, significantly reducing the technical expertise required from maintenance personnel.

Can be equipped with a dry-running protector as requested by the user to avoid damage caused by dry running.

Completely leak-free, thoroughly solving the leakage problem of sealed pumps, and also the best replacement for shielded pumps.

Applications:
Applicable Fields: Environmental protection, petroleum, chemical industry, food, biopharmaceuticals, power generation, metallurgy, aerospace, and other industries such as refineries, ethylene plants, natural gas processing plants, various chemical factories, pharmaceutical plants, nuclear fuel plants, nuclear power plants, etc.

Applicable Processes: Clean, flammable, explosive, volatile, toxic, valuable liquids, and other situations where no leakage is allowed, and sealing contamination of the medium is not acceptable.

Materials:
The pump's flow parts can be made from various corrosion-resistant materials such as 304, 304L, 302, 321, 316, 316L, 904, titanium alloy, nickel-based alloys, etc., according to the working conditions and user requirements. Special designs and manufacturing can be provided based on specific conditions.

Get A Quote
PREV：NQG-Stainless steel vertical magnetic pump
NEXT：NMQGD-High temperature stainless steel magnetic pump
  • Description
  • Contact Us

Application Fields
Biological medicine, petrochemical, mining, metallurgy, textile printing and dyeing, electricity, food, papermaking, electroplating, sewage treatment, flue gas treatment, new energy, new materials, and other industries.

Pump Usage
Applicable to transport inflammable and explosive volatile, poisonous and harmful, valuable and highly corrosive cleaning medium; Such as any concentration of acid and alkali, salt, solvent, strong oxidizer, etc.

Design Instruction
NMZ (Magnetic Self-Priming Pump) and NMZLEW (Two Thermal Insulation Magnetic Self-Priming Pump) are new leakage-free magnetic self-priming pumps developed by our company on the basis of NMQ magnetic pump. This series of self-priming pumps is the same as the common parts of NMQ magnetic pumps.
The pump body is composed of a liquid suction chamber, a liquid storage chamber, a volute, a reflux hole, a gas-liquid separation chamber, and the like. This pump only needs to be started for the first time and can be started directly when used later. It is suitable for special occasions such as heavy pollution and precious liquids. In recent years, it has been widely used in unloading pumps, which can prevent dry grinding and emptying, and is an ideal product for unloading pumps in tank areas.

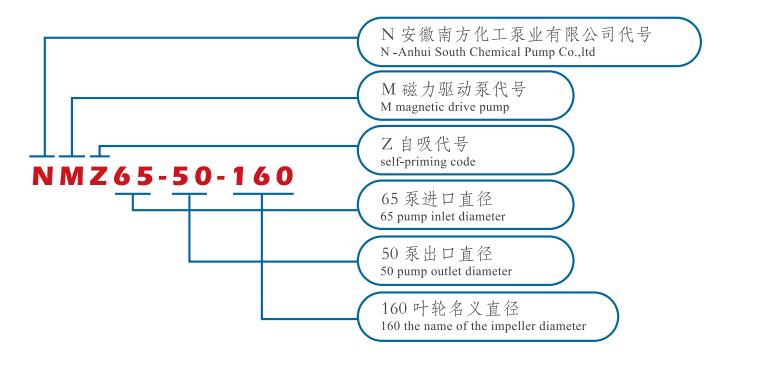

Model No Flow Capacity (m3/h) Pump Head (m) NPSHr Efficiency (%) Water shaft power Motor power Rotating speed Diameter(mm)
Inlet outlet
32-20-125 3.2 20 2 16 1.09 1.5 2900 32 20
32-20-160 3.2 32 2 15 1.86 2.2 2900 32 20
32-32-200 3.2 50 2 12 3.63 5.5 2900 32 32
40-25-125 6.3 20 2 20 1.72 2.2 2900 40 25
40-25-160 6.3 32 2 23 2.39 3 2900 40 25
40-25-200 6.3 50 2 18 4.77 5.5 2900 40 25
40-32-250 6.3 80 2 13 10.56 15 2900 40 32
50-32-125 12.5 20 2 27 2.52 3 2900 50 32
50-32-160 12.5 32 2 28 3.89 4 2900 50 32
50-32-200 12.5 50 2 30 5.68 7.5 2900 50 32
50-32-250 12.5 80 2 21 12.98 18.5 2900 50 32
65-50-125 25 20 2 41 3.32 4 2900 65 50
65-50-160 25 32 2 36 6.06 7.5 2900 65 50
65-40-200 25 50 2 32 10.64 15 2900 65 40
65-40-250 25 80 2 24 22.71 30 2900 65 40
65-40-315 25 125 2.4 26 32.75 45 2900 65 40
80-65-125 50 20 2.4 56 4.87 5.5 2900 80 65
80-65-160 50 32 2.4 44 9.91 15 2900 80 65
80-50-200 50 50 2.4 44 15.48 18.5 2900 80 50
80-50-250 50 80 2.4 38 28.68 37 2900 80 50
80-50-315 50 125 2.4 40 42.57 55 2900 80 50
100-80-125 100 20 3.2 48 11.35 15 2900 100 80
100-80-160 100 32 3.2 47 18.55 22 2900 100 80
100-65-200 100 50 3.2 47 28.99 37 2900 100 65
100-65-250 100 80 3.2 51 42.74 55 2900 100 65
100-65-315 100 125 3.2 34 100.18 110 2900 100 65
125-125-125 140 20 4.5 38 20.08 22 2900 125 125
125-80-160 160 32 4.5 43 32.44 37 2900 125 80
125-100-200 200 50 4.5 59 46.18 55 2900 125 100
125-100-250 200 80 4.5 41 106.33 110 2900 125 100
150-125-250 200 20 2.8 51 21.37 22 1450 150 125
150-125-315 200 32 2.8 57 30.59 37 1450 150 125
150-125-400 200 50 2.8 56 48.66 55 1450 150 125
200-150-250 400 20 3.2 68 32.06 37 1450 200 150
200-150-315 400 32 3.5 66 52.84 75 1450 200 150
200-150-400 400 50 3.8 52 104.8 110 1450 200 150
250-200-400 600 50 4 47 173.92 185 1450 250 200

Working Conditions

Caliber 20 - 300mm
Operating temperature - 120℃ - 320℃
Flow range 3m³/h - 800m³/h
Head range 12.5m - 130m
Material range 304, 304L, 316L, 2205/904L, TA2, Hc276
Design standard HG/T2730, SH/T3148, API685
