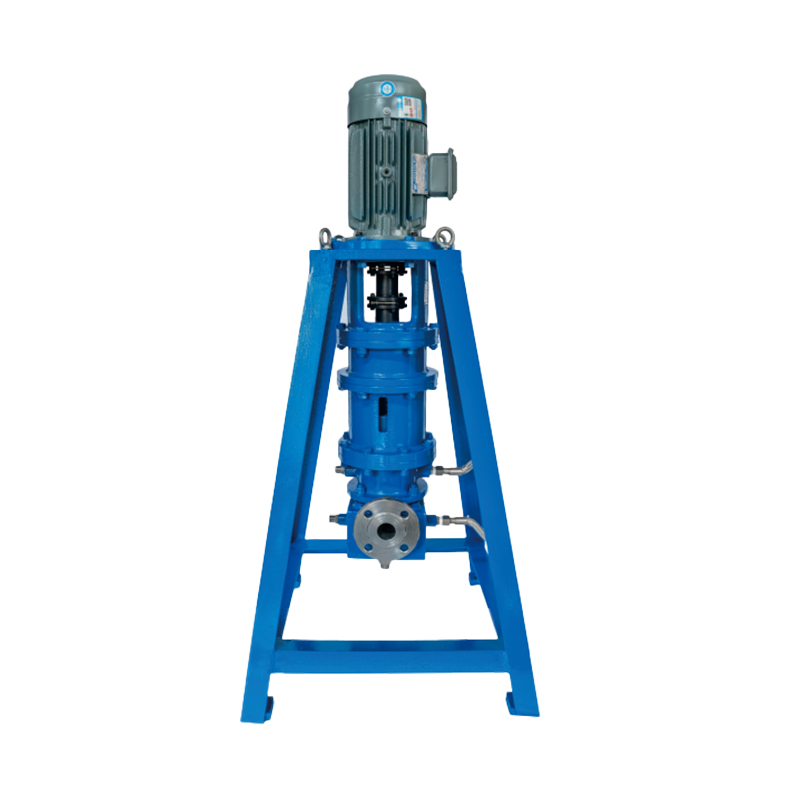

NQG-Stainless steel vertical magnetic pump Custom

Home / Products / Magnetic Drive Pumps / NQG-Stainless steel vertical magnetic pump
  • Description
  • Contact Us

Application Fields
Biological medicine, petrochemical, mining, metallurgy, textile printing and dyeing, electricity, food, papermaking, electroplating, sewage treatment, flue gas treatment, new energy, new materials, and other industries.

Pump Usage
Applicable to transport inflammable and explosive volatile, poisonous and harmful, valuable and highly corrosive cleaning medium; Such as. any concentration of acid and alkali, salt, solvent, strong oxidizer, etc.

Design Instruction

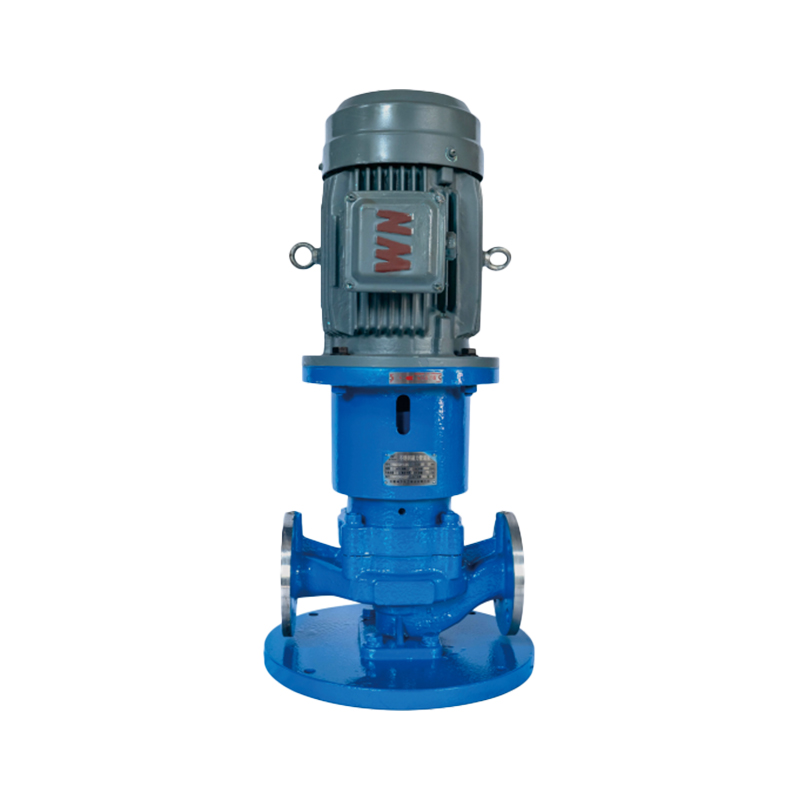

NQG vertical magnetic pipeline pump and NQG-W (thermal insulation vertical magnetic pipeline pump) are new leak-free magnetic pumps developed by
our company according to the current user and market demand, combined with the existing magnetic pumps and pipeline pumps in the market. The structure
integrates the advantages and characteristics of the small space occupied by the vertical pump, thus eliminating the inevitable phenomena of running, emitting, dripping, and leaking in the petrochemical industry and realizing no leakage.

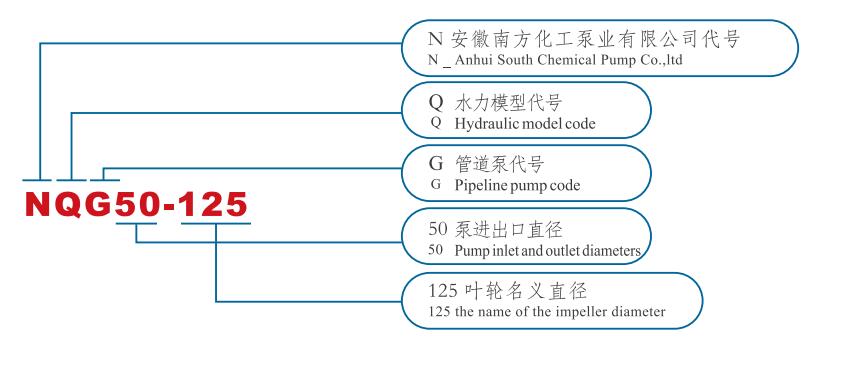

Model No Flow Capacity (m3/h) Pump Head (m) NPSHr Efficiency (%) Water shaft power Motor power Rotating speed DN(mm)
NOG25-160 3.2 32 2.3 19 1.47 2.2 2900 25
NOG32-125 3.2 20 2.3 14 1.25 1.5 2900 32
NOG32-160 3.2 32 2.3 12 2.33 3 2900 32
NOG40-100 6.3 12.5 2.3 35 0.61 1.1 2900 40
NOG40-125 6.3 20 2.3 25 1.37 2.2 2900 40
NOG40-160 6.3 32 2.3 18 3.05 4 2900 40
NOG40-200 6.3 50 2.3 13 6.6 7.5 2900 40
NOG50-125 12.5 20 2.3 26 2.62 3 2900 50
NOG50-160 12.5 32 2.3 25 4.36 5.5 2900 50
NOG50-200 12.5 50 2.3 25 6.81 7.5 2900 50
NOG65-100 25 12.5 2.5 50 1.7 2.2 2900 65
NOG65-125 25 20 2.5 35 3.89 5.5 2900 65
NOG65-160 25 32 2.5 37 5.89 7.5 2900 65
NOG65-200 25 50 2.5 33 10.32 15 2900 65
NOG80-125 50 20 3 31 8.79 11 2900 80
NOG80-160 50 32 3 38 11.47 15 2900 80
NOG80-200 50 50 3 40 17.03 18.5 2900 80
NOG100-125 100 20 4.5 49 11.12 15 2900 100
NOG100-160 100 32 4.5 42 20.76 22 2900 100
NOG100-200 100 50 4 34 40.07 45 2900 100
NOG100-250 100 80 4 44 49.54 55 2900 100
NOG125-160 160 32 4 43 32.44 37 2900 125
NOG125-200 160 50 4 42 51.9 75 2900 125
NOG200-315(l) 400 32 4 55 63.41 75 1450 200

Working Conditions

Pump Diameter 25mm - 250mm
Working Temperature - 40℃ - 350℃
Flow Capacity Range 3m³/h - 800m³/h
Pump Head Range 12.5m - 130m
Materials Range SS304, SS316, SS316L, SS904
Designed Standard HG/T2730
